MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing the PC, CAT, or Printer
Page 5-20
Connecting a Printer to the Control Unit

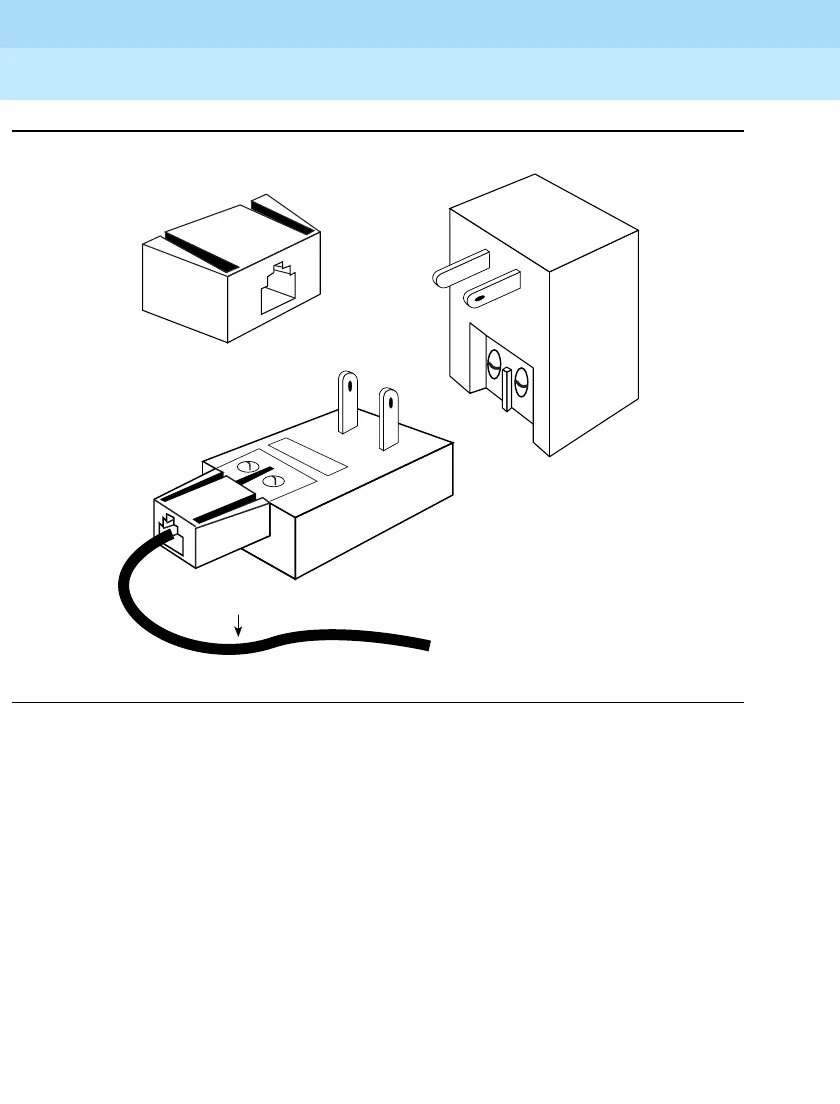

Figure 5-7. Connecting the 248B Adapter and the 2012D Transformer
!Plug the other end of the D6AP cord into the 2012D-50M
transformer.
If you are working with a 248B adapter and 2012D transformer instead of
a 2012D-50M transformer, plug the D6AP cord into the jack on the 248B
adapter, and then connect the spade-tip wires on the 248B adapter to the
screws on a 2012D transformer. See Figure 5–7.
! Plug the 400B2 adapter into a wall jack, BR1 A-4P adapter, 102
connecting block, or 103 connecting block.
! Complete the 400B2 connection.
Transformer
with 248B Adapter
248B Adapter
2012D Transformer
D6AP Cord
