MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Connecting Data Equipment
Page 6-13
MLX Voice and Terminal Adapter Data Stations
!Connect the terminal adapter to the MLX telephone.
a. Plug one end of a D8W cord into the PHONE jack on the terminal
adapter.
b. Plug the other end into the LINE jack on the MLX telephone.

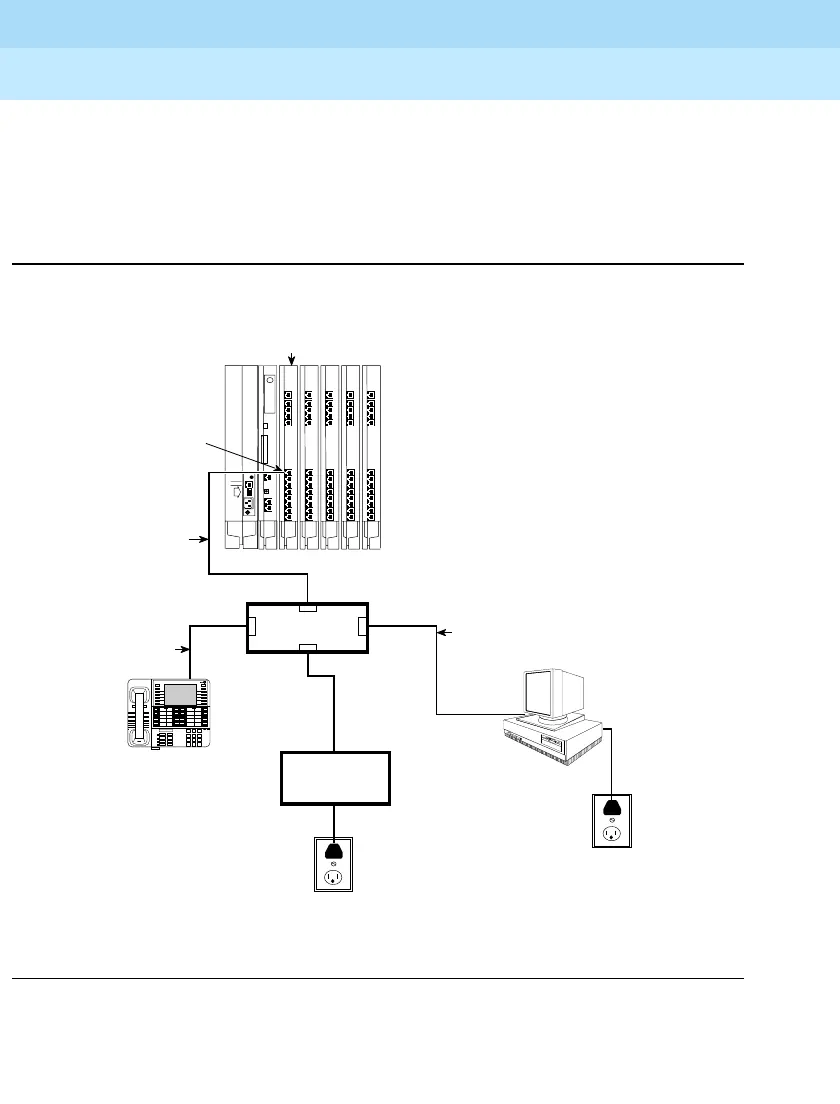

Figure 6-4. MLX Voice and Terminal Adapter Data Equipment
Configuration
Processor
TURN OFF
POWER BEFORE
INSERTING OR
REMOVING
MODULES
CAUTION
008 MLX or
408 GS/LS-MLX
Module
D8W cord
MLX
Telephone
SERIAL
connector
EIA-232-D
Cable
Data
Terminal
MLX
Extension
jack
Terminal Adapter
PORT 1
POWER
PHONE
jack
D8W
cord
LINE jack
WP90110-L7
Power Supply
AC Outlet
AC Outlet
LINE jack
MLX-20L
Volume
v
v
Feature
HFAI
Mute
Speaker Hold
Drop
Conf
Transfer
Home
Menu
More
Inspct
