MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Connecting the Control Unit to the Network Interface
Page 4-20
Wiring Two Switches Together

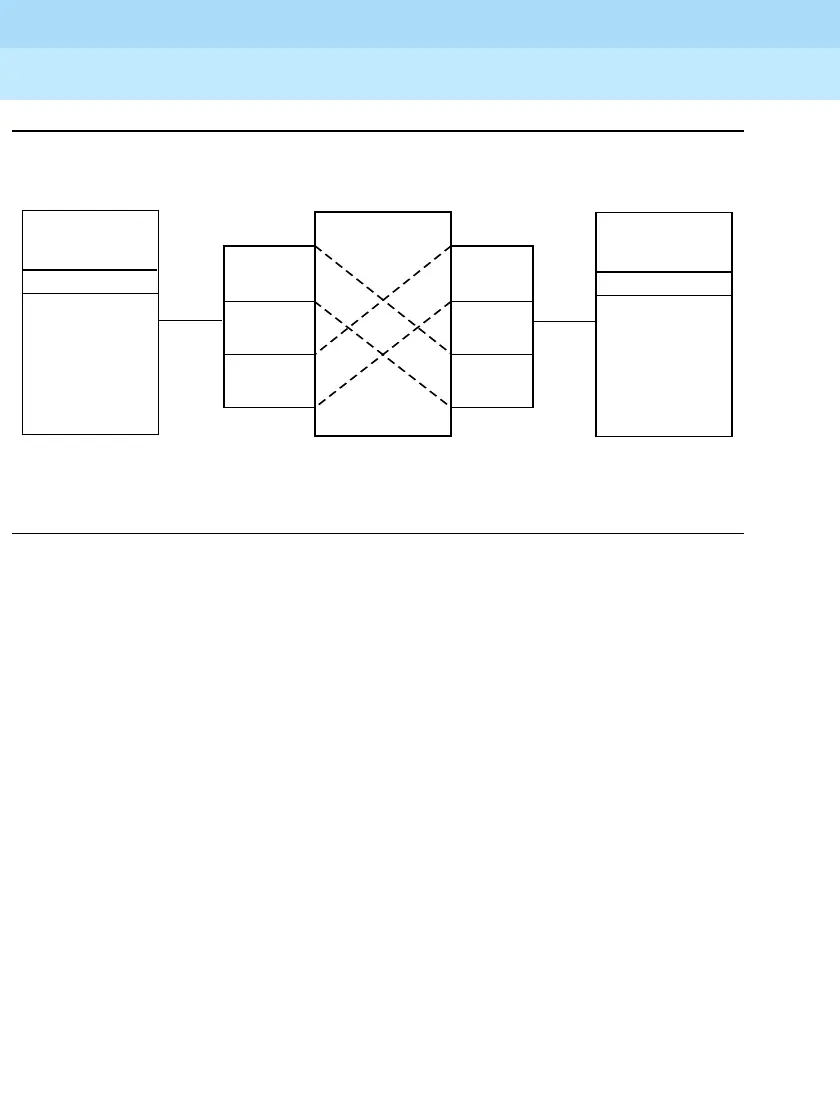

Figure 4-8. DEFINITY ECS or DEFINITY ProLogix to MERLIN LEGEND
T1 Tie Direct Connection on same continuous property
DS
1
Interface
DEFINITY
D8W
MERLIN
LEGEND
Cross Connect Field
25 Pair
Cable
DS
1
Interface
V/O(T)
O/V(R)
V/GR(T1)
GR/V(R1)
W/BL(T)
BL/W(R)
W/O(T1)
O/W(R1)
