MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-11
Installing Multi-Function Modules

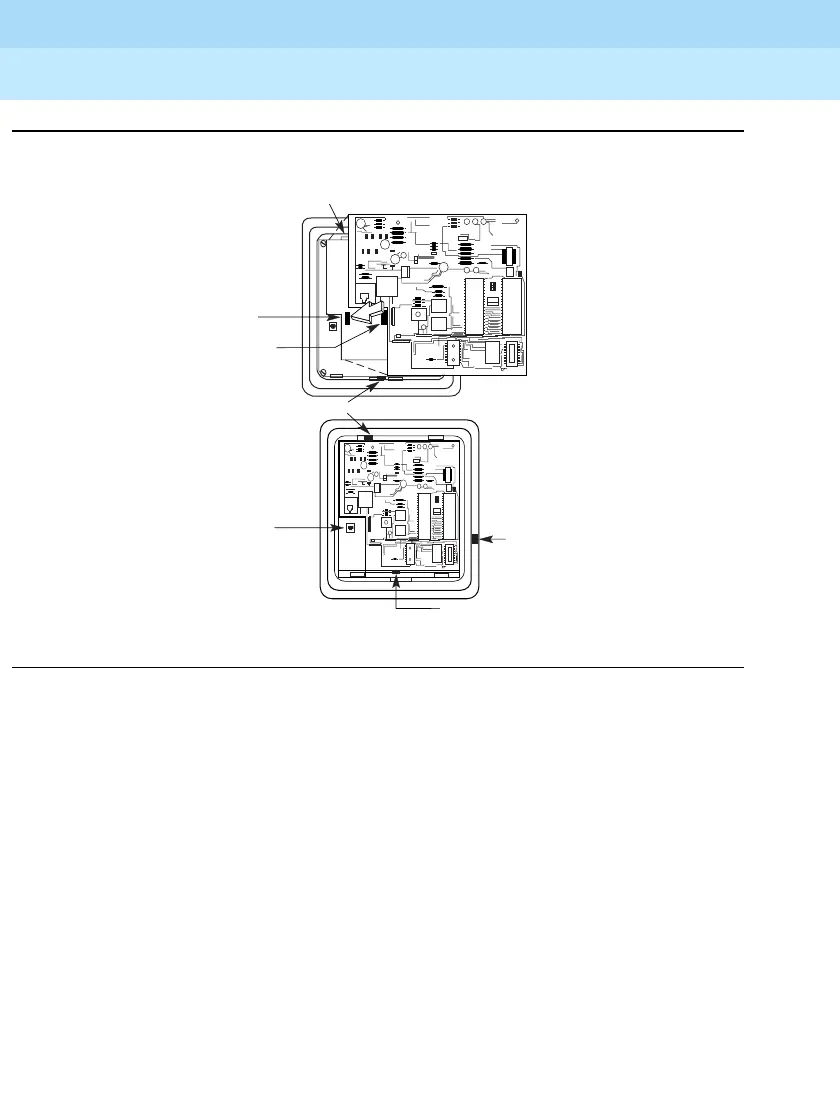

Figure 3-9. Installing an MFM Module
!Install the new MFM. See Figure 3–9.
a. Hold the MFM circuit board by the edges with the long connector
pins facing the socket. Take care not to touch the connector pins.
b. Lower the MFM to insert the pins into the socket in the telephone
base.
c. Press firmly on the MFM board to snap the locking tabs into place.
The connector pins and tabs must be secure.
..
...
.
.
..
.
.
.
.
..
.
..
..
.
..
.
..
.
.
.
.
.
.
.
.
.
.
.
.
..
...
.
.
..
.
.
.
.
..
.
..
..
.
..
.
..
.
.
.
.
.
.
.
.
.
.
.
.
Socket
Locking Tab
Locking Tab
Connector
Pins
Handset Jack
Line Jack
Locking Tab
