Lucent Technologies MERLIN LEGEND Release 6.1 Installation

MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-54
Assembling MLX Telephones

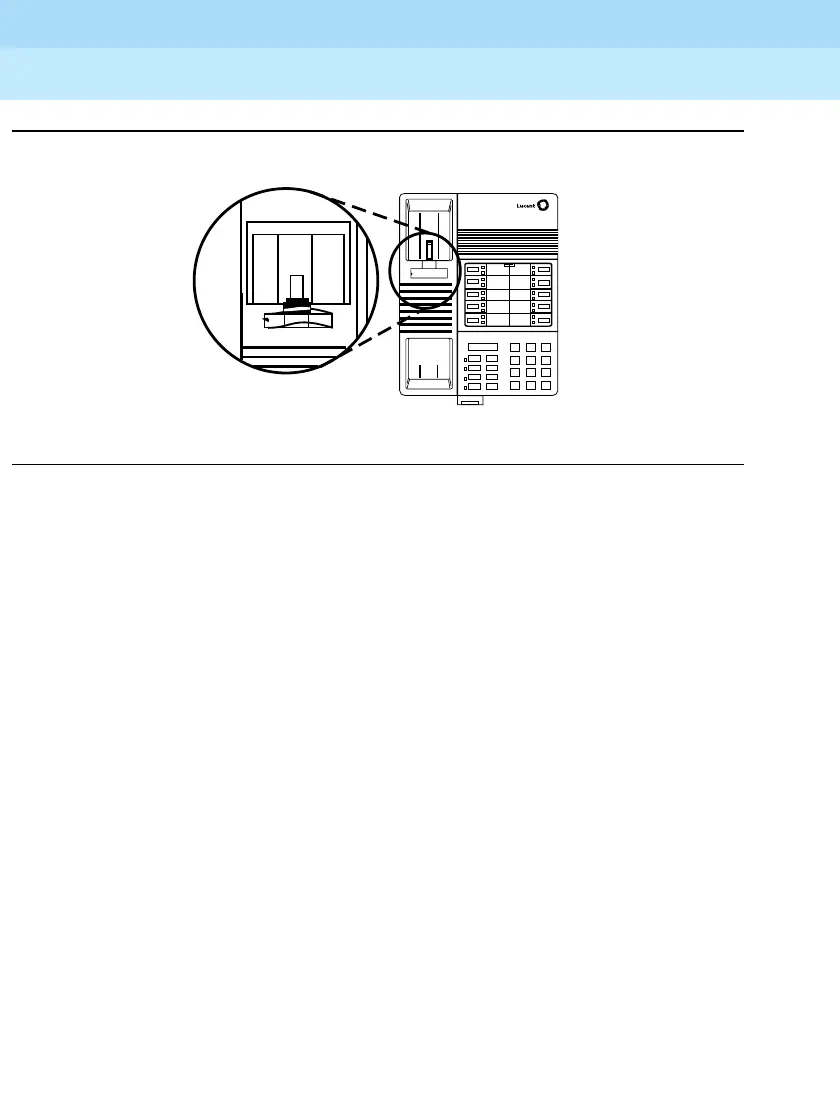

Figure 3-36. Replacing the Extension Label
!Replace the extension label and plastic cover.
a. Insert one end into the slot and snap the other end into place. See
Figure 3–36.
b. If you are mounting an MLX-5, MLX-5D, MLX-10, MLX-10D,
MLX-10DP, or MLX-16DP wall telephone, go to Step 7. If you are
assembling a desk telephone, go to Step 8.
!Wall mounting an MLX-5, MLX-5D, MLX-10, MLX-10DP, MLX-10D, or
MLX-16DP telephone.
a. Turn over the telephone and remove the jack guard from the
TEL/OTHER jack area; set the telephone aside.
b. Unpack the 630B Phonemount and remove the modular jack from
the backplate.
c. Route the D8W cord (or DIW cable) through the hole in the
backplate and have it exit at the top of the backplate; leave 10 in.
(25 cm) of cord to connect the telephone. See Figure 3–37.
555-1234
Feature
HFAI
Mute
Drop
Speaker
Hold
Transfer
Conf
GHI
4
*
Oper
0
#
9
WXYZ
8
TUV
PQRS
7
JKL
5
2
ABC
DEF
3
MNO
6
Vol ume
>
>
1
MLX-10
MLX-10
