MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-53
Assembling MLX Telephones

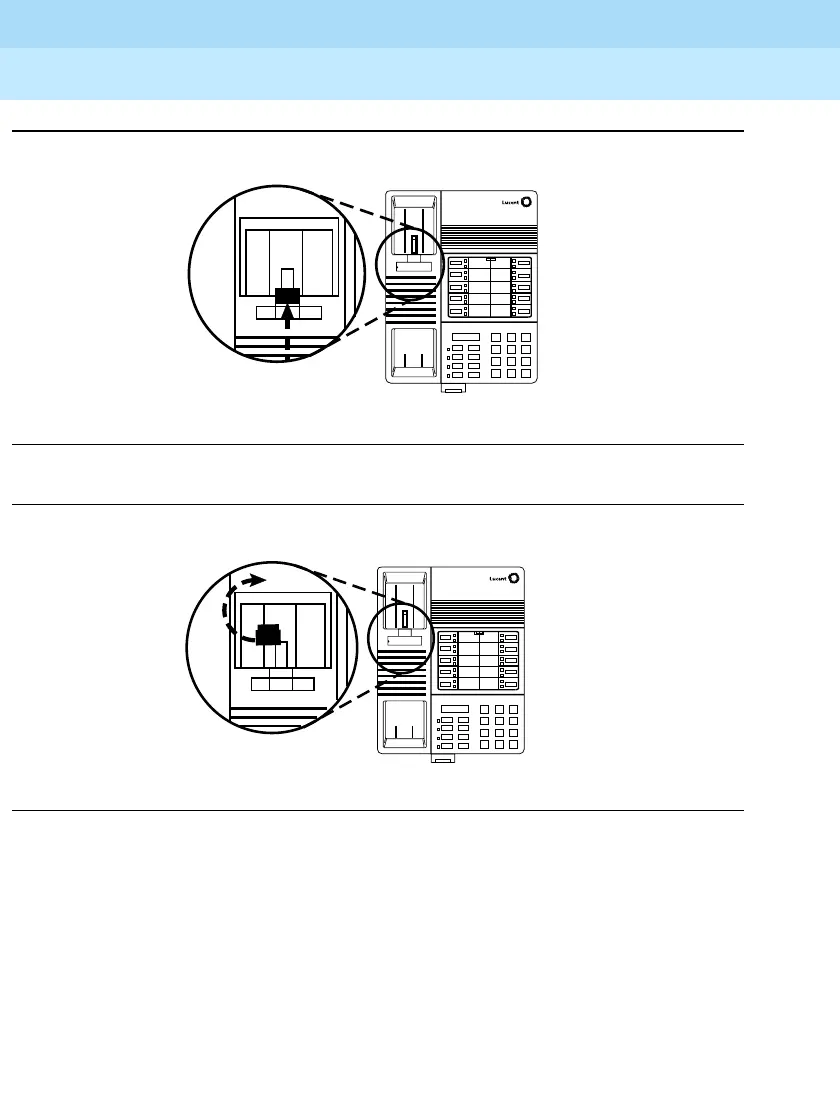

Figure 3-34. Removing the Handset Holder
Figure 3-35. Rotating the Handset Holder
!Prepare the handset holder for wall-mounting.
a. Remove the handset holder by pushing it up and pulling it out.
See Figure 3–34.
b. Rotate the handset holder 180 degrees and replace it in its slot.
See Figure 3–35.
