Lucent Technologies MERLIN LEGEND Release 6.1 Installation

MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing the Control Unit
Page 2-23
Installing the Power Supply

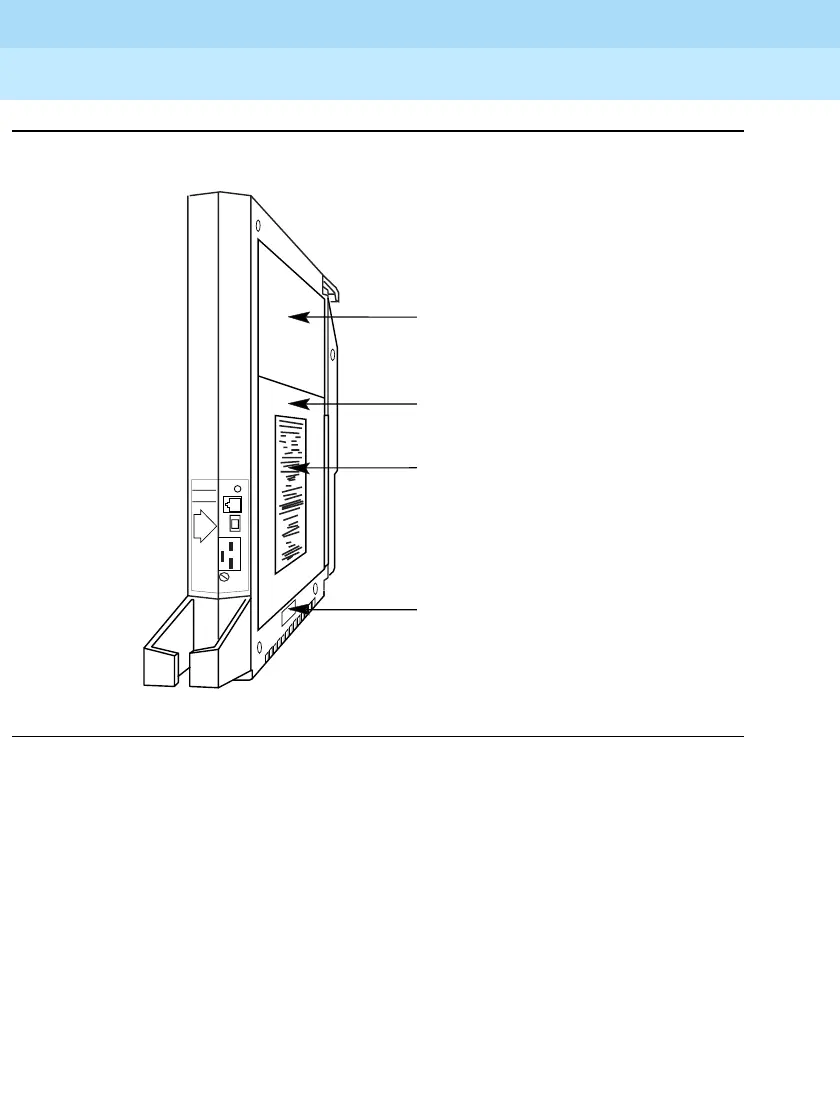

Figure 2-6. Installing a Copper Shield in the Power Supply
!Tuck the foil shield tightly along the ledge (or crease) of the housing
and work out any air bubbles as you press the foil firmly in place.
!With the copper-foil shield in place, put the power unit information
label on the lower piece of foil.
! Attach the UL or CSA label on the power supply below the
copper-foil shield.
Upper Copper
Foil Shield
Lower Copper
Foil Shield
Power Unit
Information
Label
UL Label
or
CSA Label
CAUTION
TURN OFF
POWER BEFORE
INSERTING OR
REMOVING
MODULES
