MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing the PC, CAT, or Printer
Page 5-13
Connecting a Printer to the Control Unit

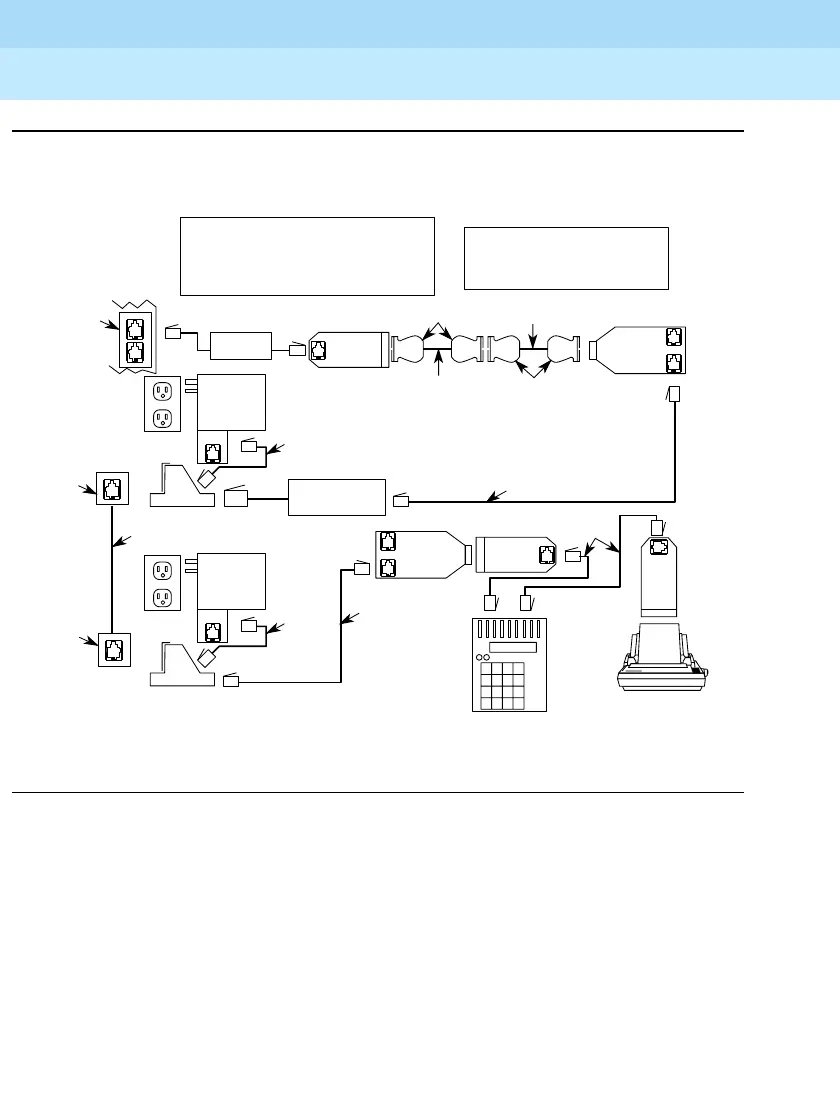

Figure 5-4. Connecting a CAT and Printer on Different AC Outlets:
Control Unit Connections
! Plug the other end of the D6AP cord into the lower jack on the
400B2 power adapter.
! Plug the 2012D-50M (or 2012D) transformer into the wall outlet for
the control unit.
CAT PLUS Connections Using
Different AC Outlets
*ADU Arrangements*
Z3A2 ADU With
M8AJ-87 Equivalent
To Z3A4 ADU
CAT Printer
CAT PLUS Terminal
D8W-87
D8W-87
D8W-87
355A
355A
355AF
Tele
ZA3A2 ADU
Wall
Tele
ZA3A2 ADU
Wall
400B2
400B2
248B
AC
Outlet
2012D
Transformer
D8AM-87
Crossover
D6AP-87
M7U-87
EIA Crossover
Female
Male
Inside Wire
Wall
Jack
Wall
Jack
MERLIN
LEGEND
SMDR
M8AJ-87
Z200A
248B
2012D
Transformer
D6AP-87
AC
Outlet
