Lucent Technologies MERLIN LEGEND Release 6.1 Installation

MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-21
Installing Multi-Function Modules

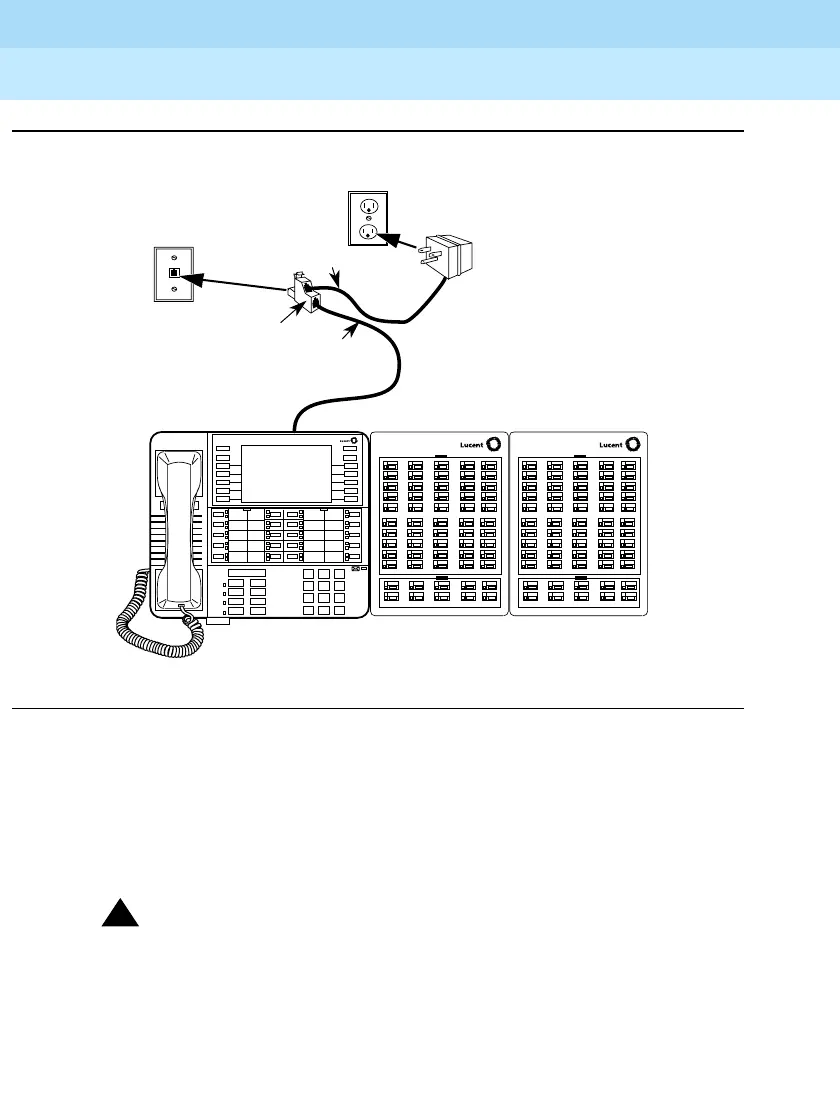

Figure 3-19. Powering Up the Telephone after Installing the MFM
b. Connect one end of the D6AP cord to the 2-conductor (small)
modular jack on the 400B or 400B2 adapter, and plug the other
end into the modular jack of the 406943837 power supply.
The
total length of the cords connecting the power supply to the MLX
telephone must be less than or equal to 50 ft. (15 m).
!
CAUTION:
Do not plug the D6AP cord into the 8-conductor (large)
modular jack on the 400B or 400B2 adapter; doing so can
cause electrical damage to the control unit and to the
telephone.
D8W
D6AP
Power
Supply
Wall Jack
v
Volume
Feature
HFAI
Mute
Speaker
Transfer
Conf
Drop
Hold
ABC DEF
GHI JKL
MNO
PQRS TUV WXYZ
OPER
123
456
789
0
#
*
MLX-20L
Home
Menu
More
Inspct
400B2 Adapter
AC Power
Outlet
