Lucent Technologies MERLIN LEGEND Release 6.1 Installation

MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Connecting the Control Unit to the Network Interface
Page 4-7
Wiring
Building the Wiring Field
Build the wiring field between the network interface and the control unit
using 110AB1-100JP12 termination blocks with modular jacks and
associated hardware. Figure 4–2 shows the hardware you need,
including 110AB1-100JP12 termination blocks with modular jacks,
110A1 wire troughs, D-rings, and D2R cords.

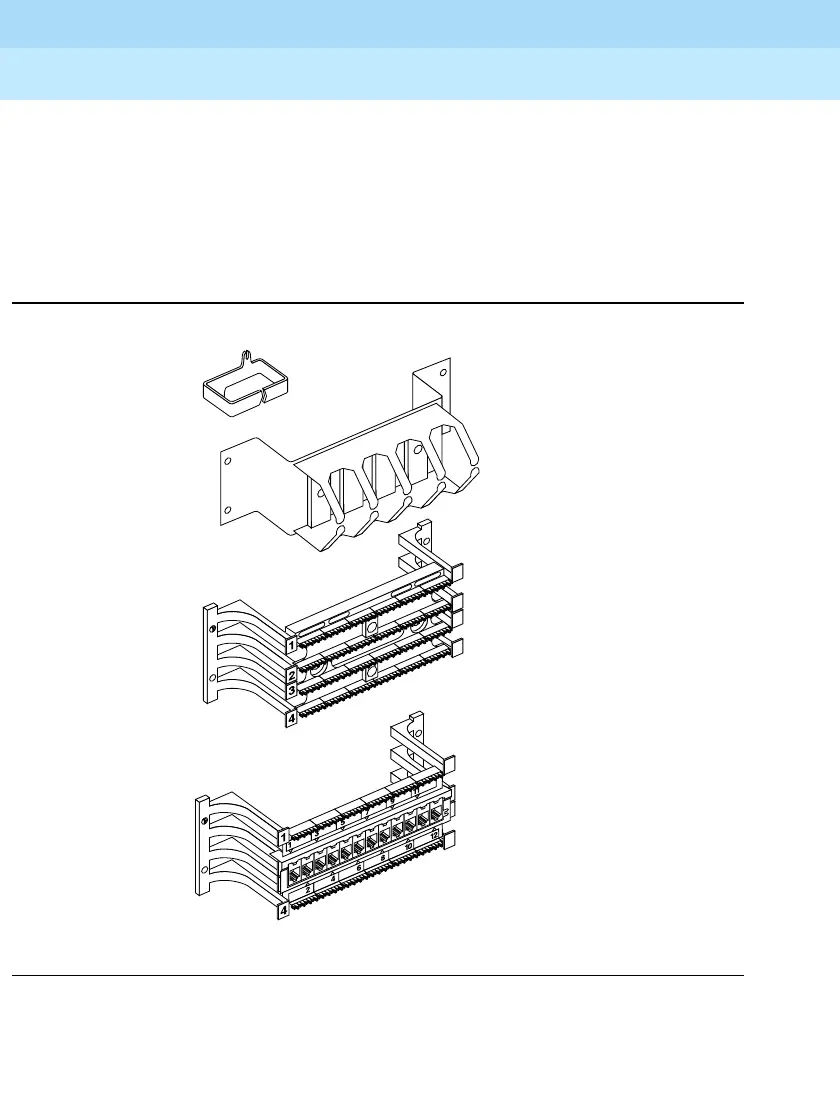

Figure 4-2. RJ21X Wiring Field Hardware
110AB1-100JP12 Terminal Block
110A1 Wire Trough
D-Ring
110 AB1-100FT
Field Terminal Block
