Lucent Technologies MERLIN LEGEND Release 6.1 Installation

MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-23
Installing Adjuncts
!Insert the other end of the adjunct cord into the TEL/OTHER jack on
the back of the MLX telephone. Go to Step 7.

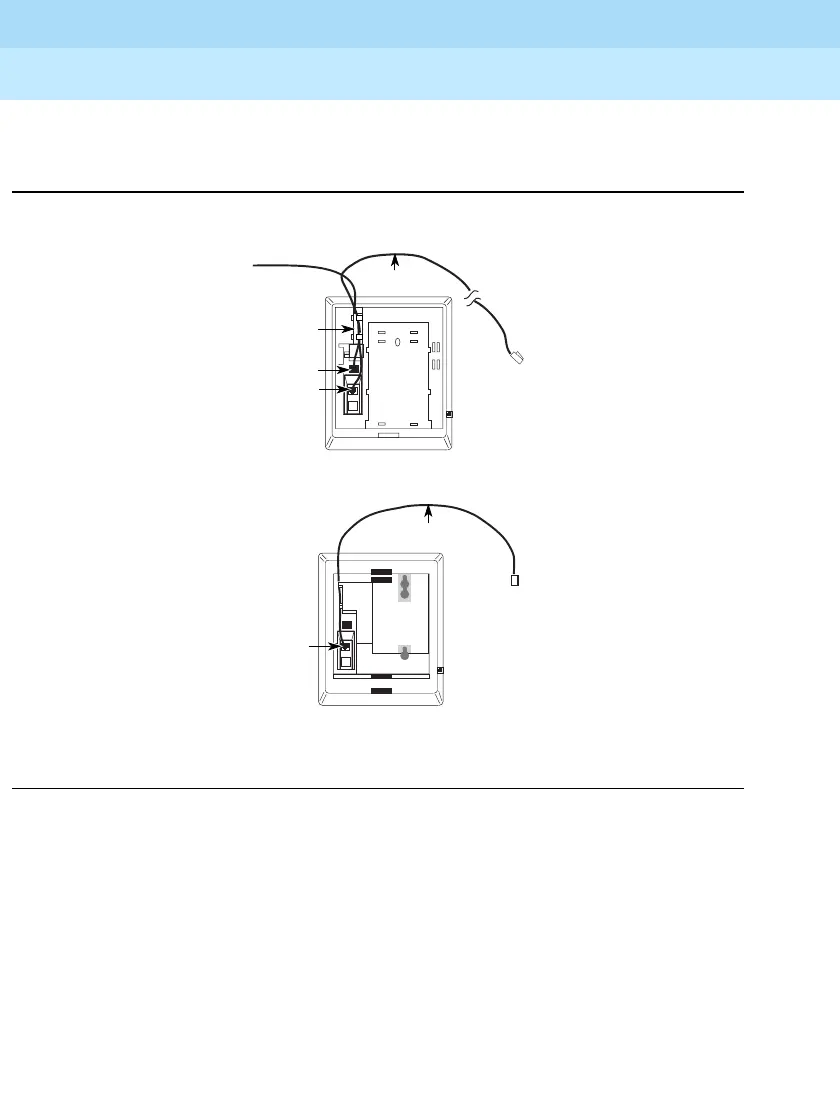

Figure 3-20. Routing the Cord(s) Through the Cord Channel
!To connect an adjunct to a single-line telephone:
a. Connect a 26A2 bridging adapter to the telephone.
b. Connect the cord from the adjunct to the bridging adapter.
c. Reconnect the cord from the control unit to the bridging adapter.
d. Go to Step 7.
D8W
Line
D8W
Cord Channel
Line
MLX-10
Desk Telephone
To
Adjunct
D4BU Connects to
TEL/OTHER
Jack
To
400B
MLX-10
Wall-Mounted Telephone
