Installing Telephones and Adjuncts
Page 3-51
Assembling MLX Telephones

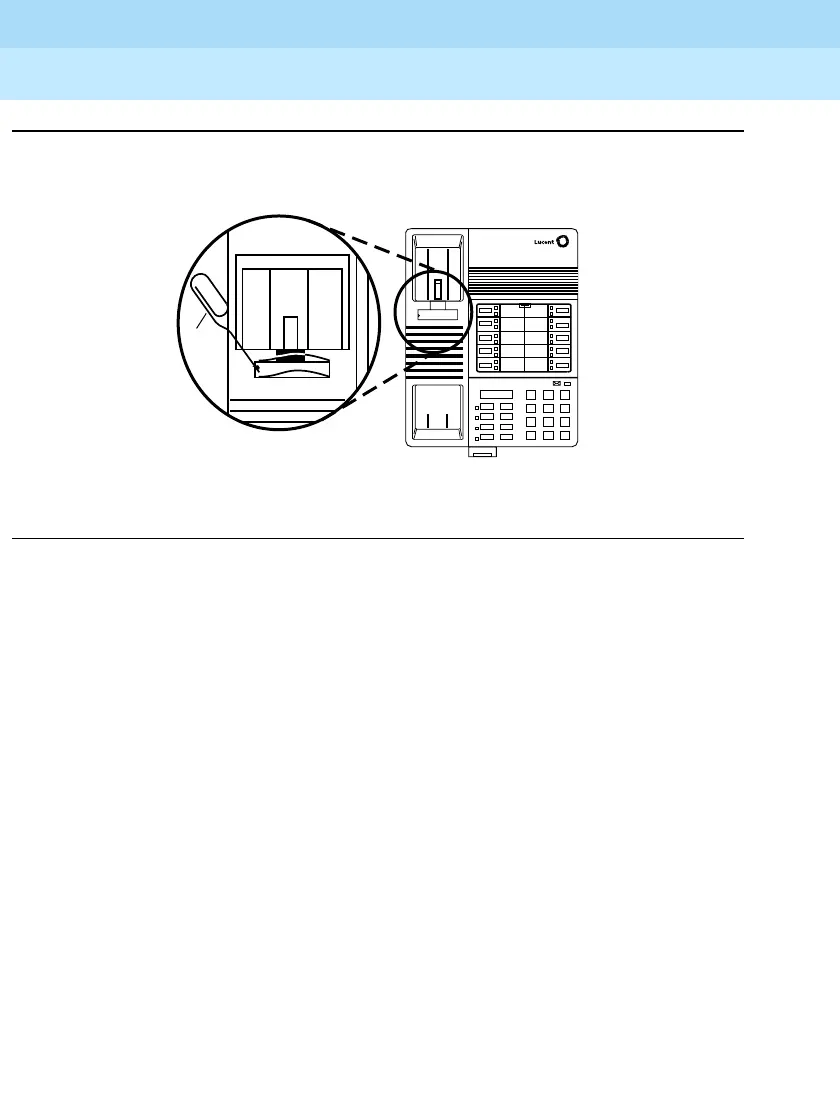

Figure 3-32. Removing the Extension Label
!Connect the handset.
Insert one end of the coiled H4DU handset cord into the handset.
!Label the extension identification card.
a. Insert a straightened paper clip into the hole on the side of the
plastic cover while holding your finger on the opposite edge; use
the paper clip to push and lift the cover. See Figure 3–32.
MLX-10
MLX-10
Feature
HFAI
Mute
Drop
Speaker
Hold
Transfer
Conf
GHI
4
*
Oper
0
#
9
WXYZ
8
TUV
PQRS
7
JKL
5
2
ABC
DEF
3
MNO
6
Vol ume
>
>
1
Paper
Clip
