MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-45
Installing Direct Station Selectors

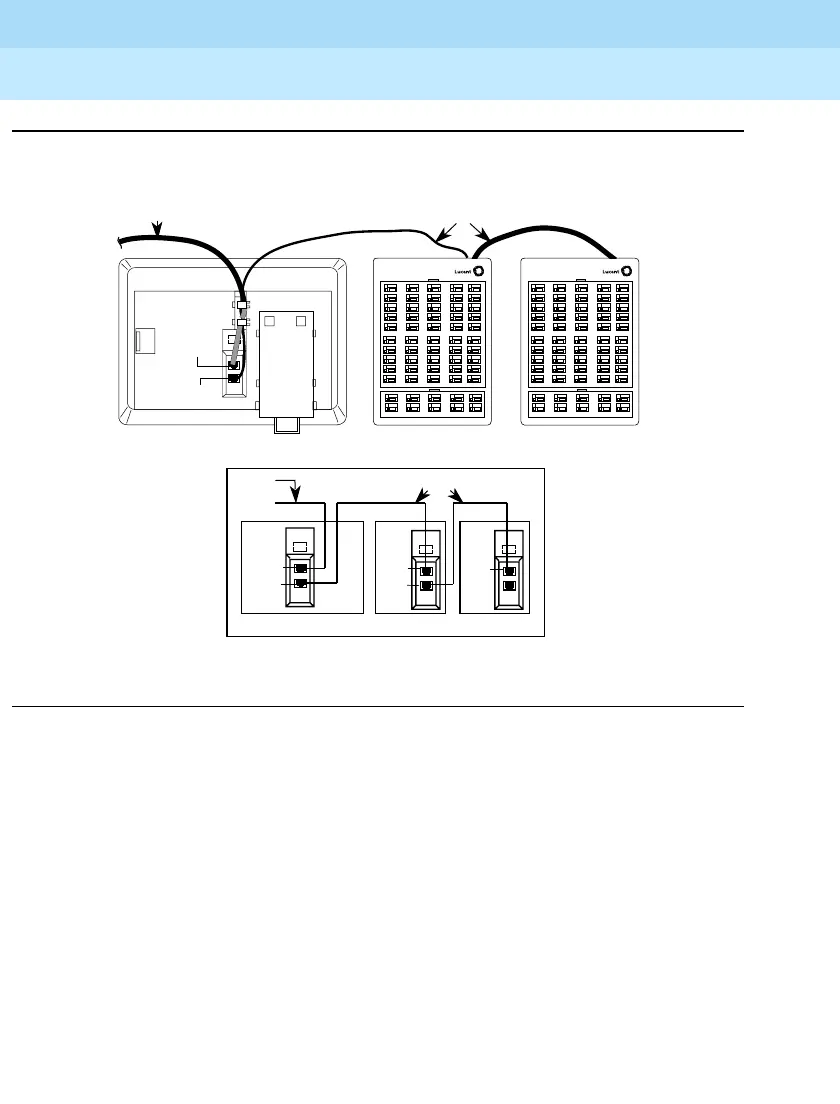

Figure 3-28. Connecting One or More DSSs
!Wire the telephone to the DSS unit(s). See Figure 3–28.
a. Remove the handset from the telephone, then place the telephone
face down on a flat surface to the right of the upside-down DSS
unit(s).
b. Plug the D8AC cord from the IN jack on the DSS1 into the DSS
jack on the telephone; then route the cord through the cord
channel.
c. Plug the D8W line cord into the LINE jack on the MLX telephone.
The D8AC and D8W cords share the cord channel on the
telephone.
DSS
MLX Telephone
D8W
D8AC
LINE
DSS 1
DSS 2
D8W
D8AC
MLX Telephone
DSS 1
DSS 2
IN
OUT
IN
LINE
DSS
To Next Page
