MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-14
Installing Multi-Function Modules

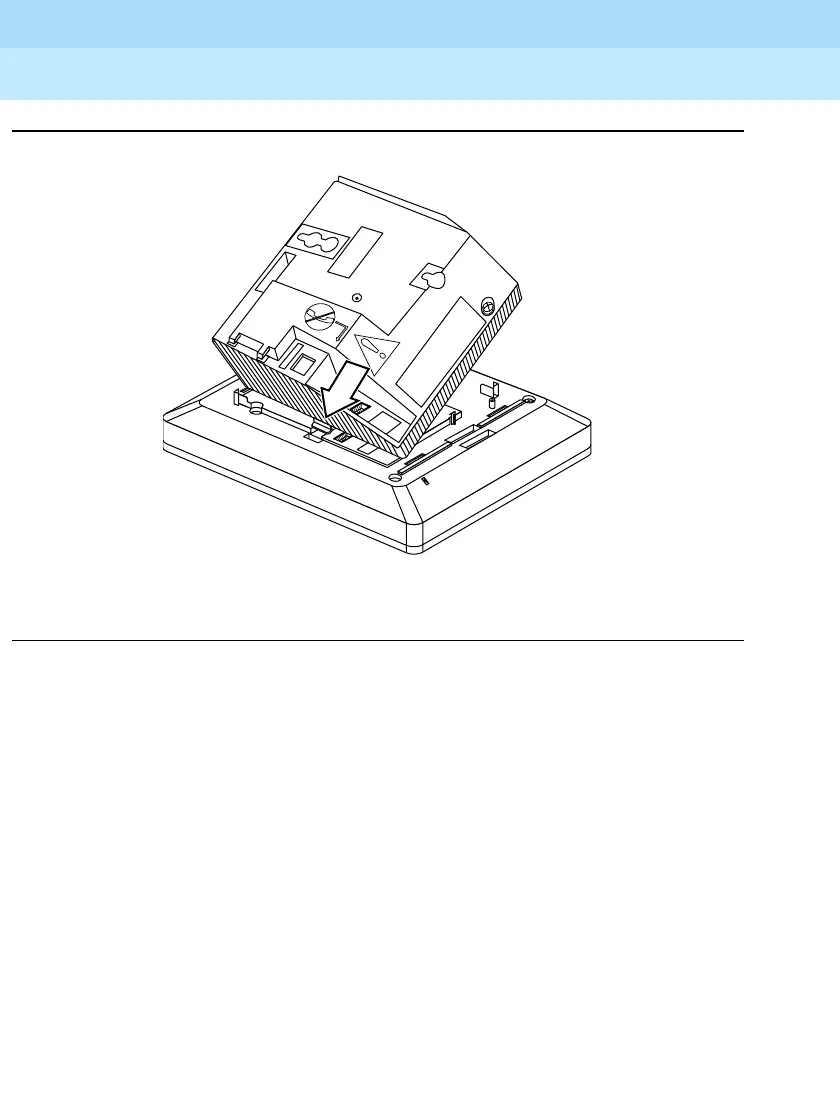

Figure 3-12. Placing the Module Cover into the Locating Slot
!To replace the module cover, see Figure 3–12, Figure 3–13, and
Figure 3–14.
a. Place the locking tab on the module cover into the slot on the left
side of the telephone.
Lower
Cover
Into Locating Slot
