LB 9507 Chapter 10: Kinetic Measurements
10-3
K1
READY
MEASURE PROTOCOL -OTHERS-
K2
PROTOCOL
MASTER CURVE CREATE CHANGE
K3 K2a
K2b
K4
K2c
K4a
K5
06: OPERATOR ID.
(…)
K16
06: INPUT ALL CORRECT? YES
YES NO
K1
READY
MEASURE PROTOCOL -OTHERS-
K21
SELECT TYPE OF MEASUREMENT ?
PROTOCOLS DIRECT ENTRY RATEMETER
K22

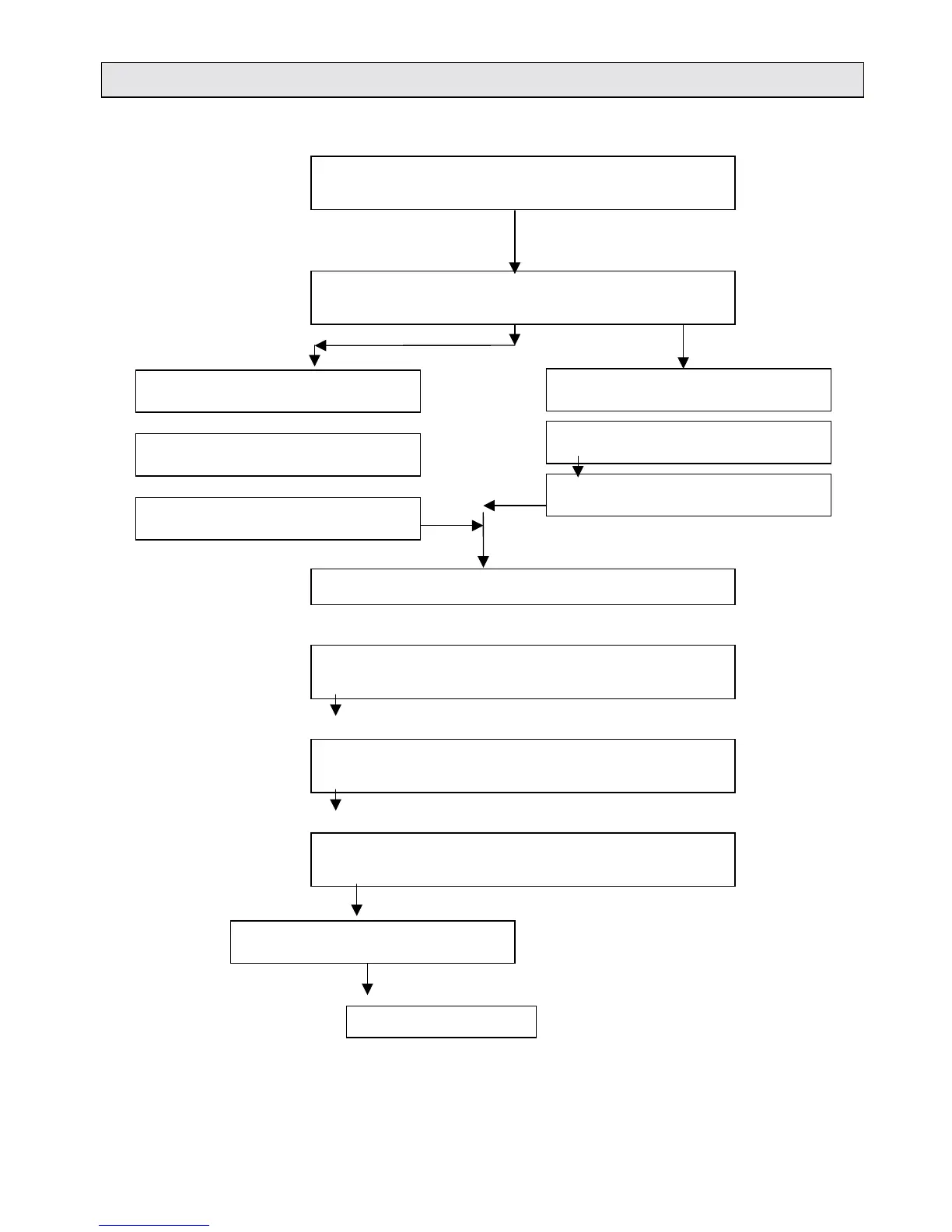

Fig. 10-1: Flow chart showing protocol setup and measurement
Create protocol
Change protocol
06: PROTOCOL NAME
06: PROTOCOL NAME
RAW DATA CUTOFF -OTHERS-
06: PROTOCOL NUMBER 6
PRINT LIST
PROTOCOL 6
CHANGE OTHERPROT. PRINT PROT.
DELETE PROTOCOL?
NO YES
Routine measurements
ENTER PROTOCOL NUMBER 6
Start of measurement
06: PROTOCOL NAME
DL-ASSAY REPEATED -OTHERS-
