Chapter 13: Maintenance LB 9507
13-2
13.2 Replacing the Mains Fuse
The mains fuses are located on the rear panel of Lumat. The fuse
holder and mains connection socket form a single unit.
Fuse compartment
Snapper

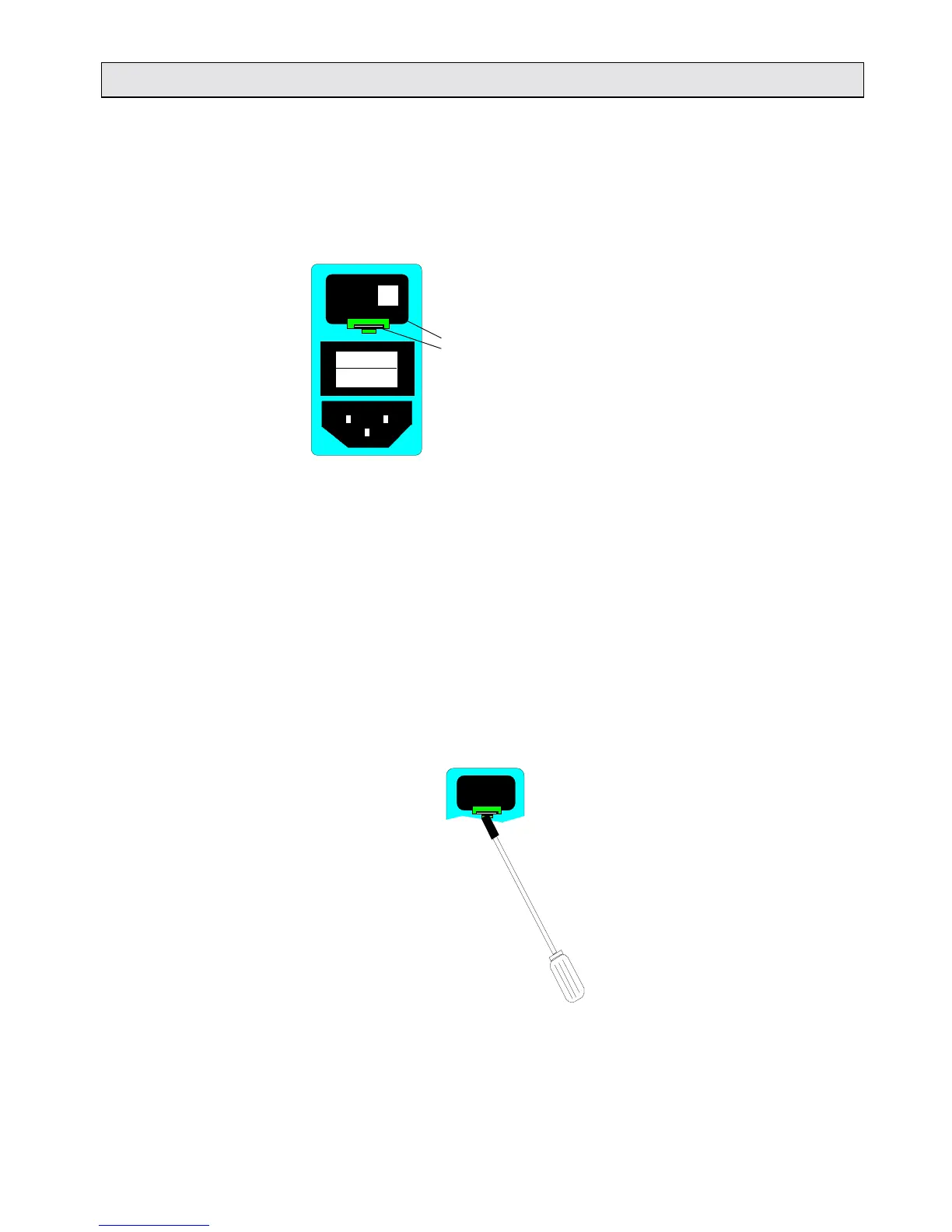

Figure 13-3: Fuse compartment at the mains socket
❏ Disconnect the mains plug
❏ Lift the snapper from below with a screwdriver
❏ The fuse compartment is pressed slightly forwards by a spring
and can be removed.
❏ Replace the fuse.
❏ Press the fuse compartment into its opening until it snaps into
place.
❏ Make sure the fuse setting and mains voltage match (see
figure 13-3).
0
Figure 13-4: Press the snapper up with a screwdriver
0
