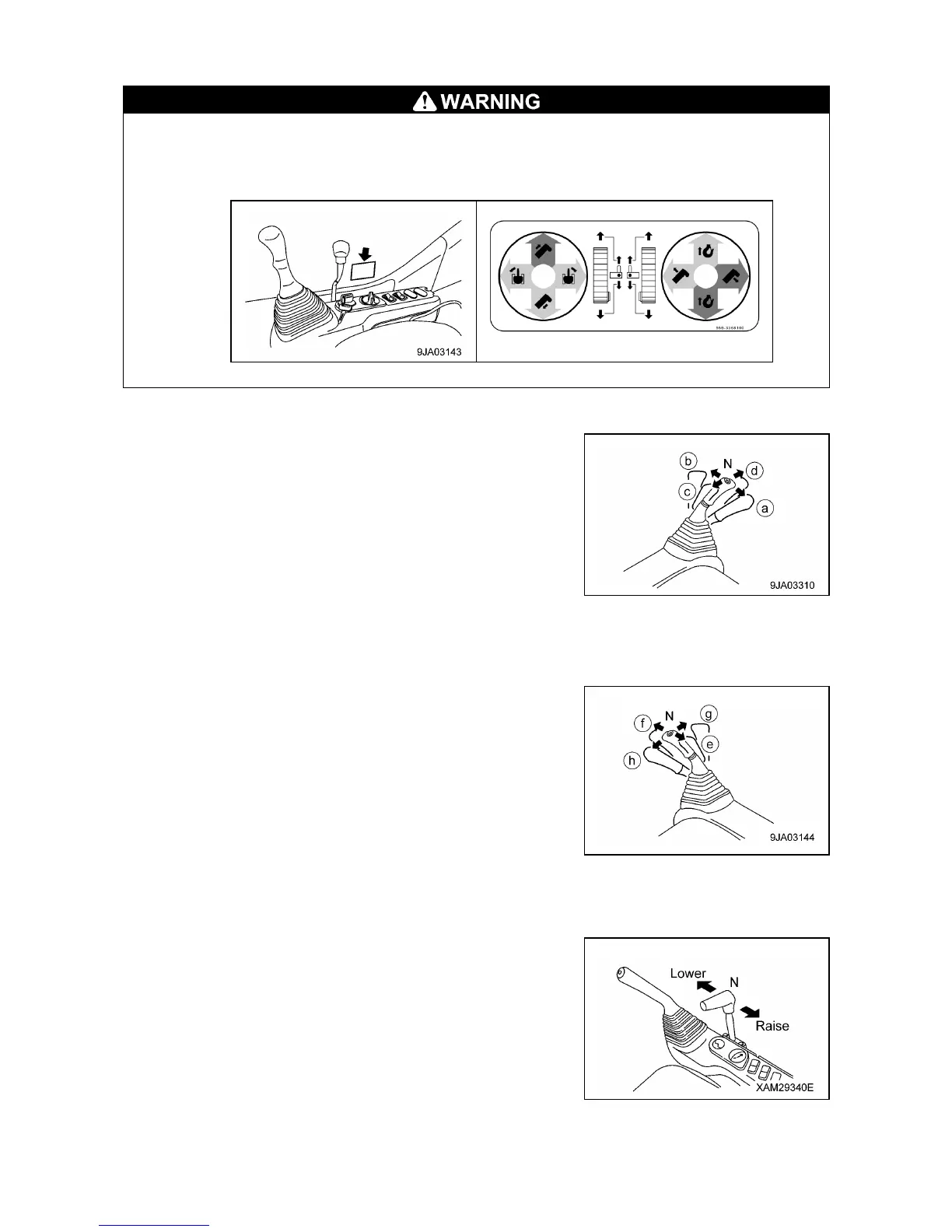

• The control pattern of this machine is as indicated in the CONTROL PATTERN label, as below.
When any user desires to change to any other pattern, please contact us, or our sales and
service agency.
• In such event that the control pattern is changed, the CONTROL PATTERN label must also be
replaced.
(1) LEFT WORK EQUIPMENT CONTROL LEVER
The lever (3) is used to operate the upper structure and boom.
Swing operation
• (a): Swing to right
• (b): Swing to left
Boom telescoping operation
• (c): Boom retracting
• (d): Boom extending
• N (Neutral): The upper structure and boom are held in that
position when they come to a stop and do not move.
(2) RIGHT WORK EQUIPMENT CONTROL LEVER
The lever (4) is used to operate the winch and boom.
Winch operation
• (e): Hook raising
• (f): Hook lowering
Boom derricking operation
• (g): Boom lowering
• (h): Boom raising
• N (Neutral): The hook and boom are held in that position when
they come to a stop and do not move.
[4] BLADE CONTROL LEVER
The lever (5) is used to operate to the blade.
• RAISE: Blade raising
• NEUTRAL: The blade are held in that position when they come
To a stop and do not move.
• LOWER: Blade lowering
