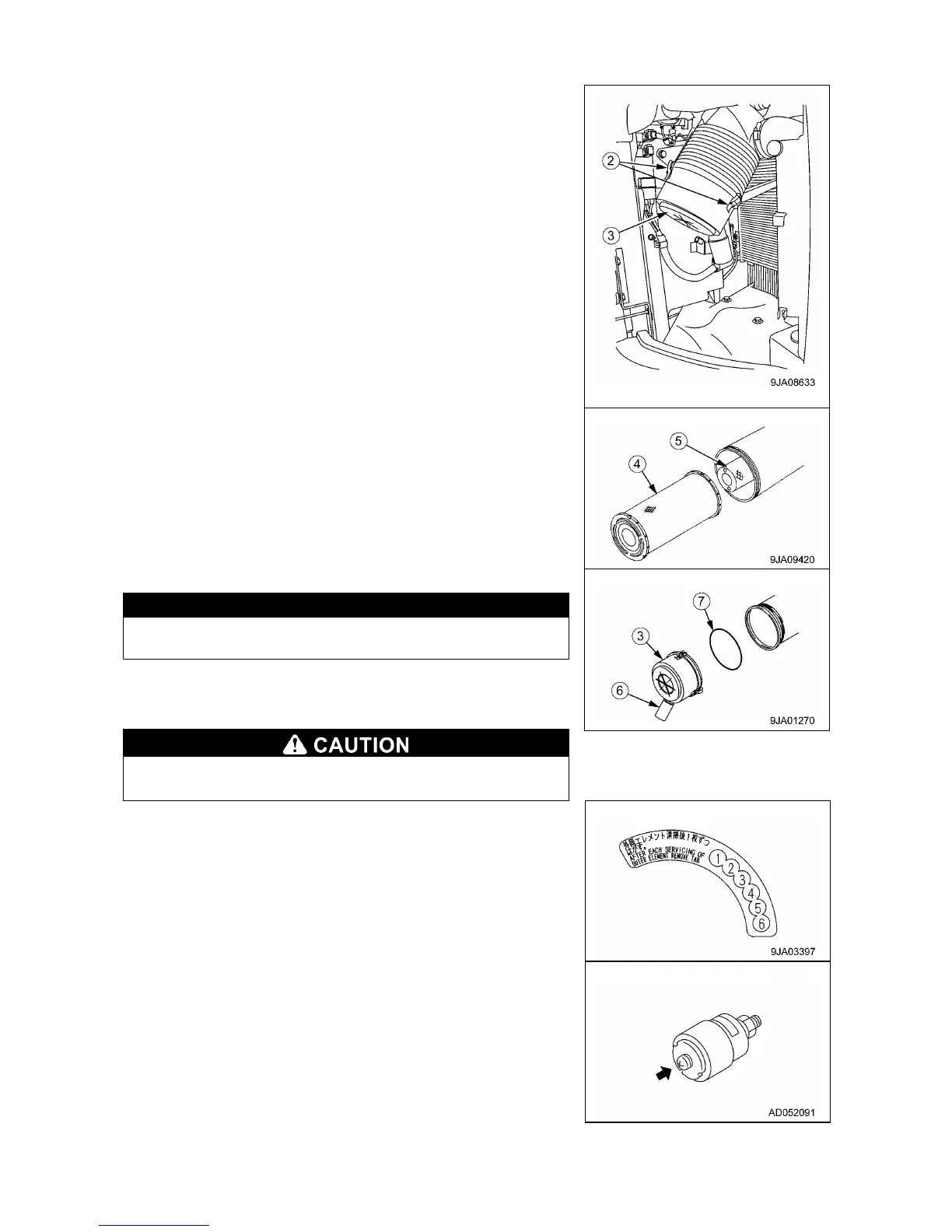

[REPLACEMENT ELEMENT]
1. Open the battery room door on the left side of the machine.
2. Remove 3 clips (2), and then take out cover (3).
3. Remove outer element (4).
Do not remove inner element (5) at this time, however.
4. Clean the inside of the air cleaner body and the cover (3).
CAUTION
When cleaning cover (3), do not remove evacuator valve (6).
5. Remove inner element (5), and then install a new inner element
immediately.
When installing the cover (3), check O-ring (7) and replace it
if there are any scratches or damage.
6. Set the cleaned outer element in position, and then secure cover
(3) with mounting clips (2).
7. Replace the seal attached to cover (3) with new one.
8. Return the red piston in the dust indicator (1) to its original
position.
