4-48

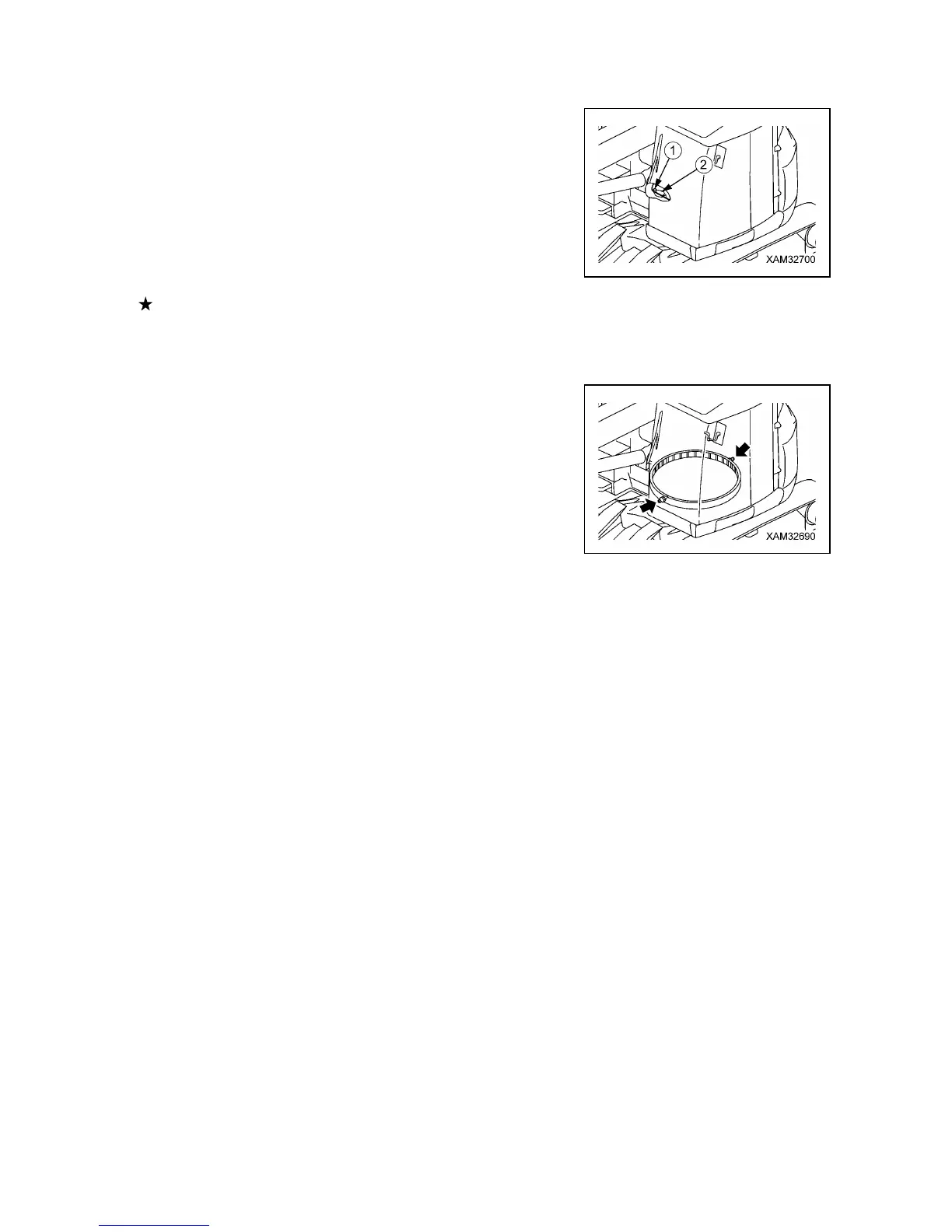

[4] CHECKING SWING PINION GREASE LEVEL, ADDING GREASE
• Prepare a scale.
1. Remove 2 bolts (1) on the top of the upper structure and remove
cover (2).
2. Insert a scale into the grease and check that the height of the
grease in the portion where the pinion passes is at least 4 mm.
Add more grease if necessary.
3. Check if the grease is milky white. If it is milky white, it is
necessary to change the grease. Please contact us or our sales
service agency.
Total amount of grease: 10 liters (9.1 kg)
4. Install cover (2) with bolts (1).
[5] GREASING SWING CIRCLE
1. Using a grease gun, pump in grease through the grease plug
shown by arrows. (2 places)
2. After greasing, wipe off any old grease that was pushed out.
