4-50

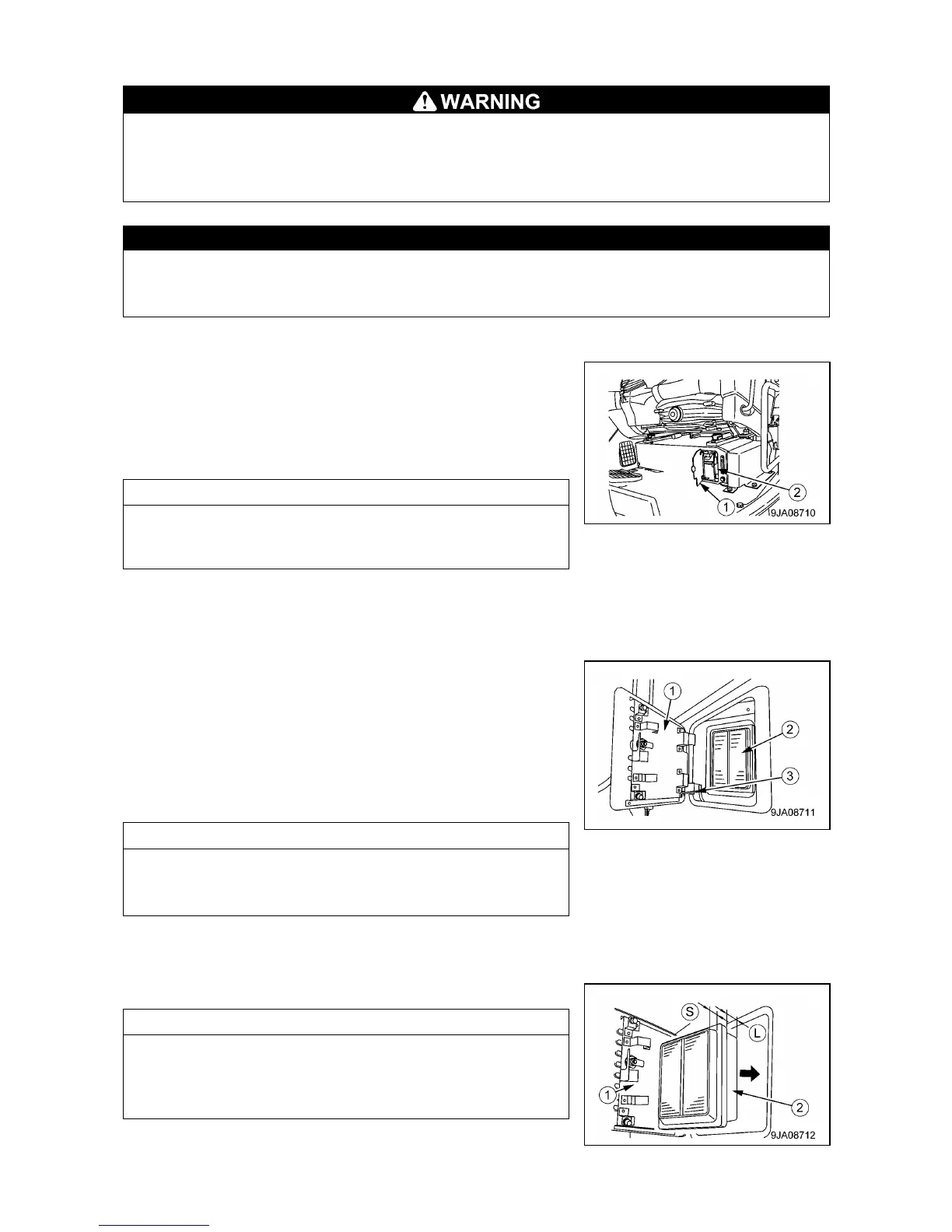

[7] CLEANING AIR CONDITIONER FRESH/RECIRC FILTERS
• When using compressed air, there is danger of dirt flying and causing personal injury. Always
wear protective glasses, dust mask, and other protective equipment.
• Always check that the slide door is locked at the open or closed position before cleaning the
FRESH or RECIRC filter. If the slide door is free, there is danger that it may suddenly move and
catch your fingers or break the cover.
• The guide for cleaning the filter is 500 hours, but if the machine is used on an extremely dusty
jobsite, reduce the maintenance interval and clean the filter more frequently.
• When washing the floor, be careful not to get water on the air conditioner system.
[CLEANING RECIRCULATED AIR FILTER]
1. Open cover (1) at the front bottom left of the operator’s seat.
2. Take out internal filter (2).
3. Clean internal filter (2) with compressed air. If there is oil stuck to
the filter (2) or it is extremely dirty, wash it in a neutral agent.
After washing, dry it thoroughly before using it again.
If the clogging of the filter cannot be removed by blowing it with
compressed air or washing in water, replace the filter with a new
one.
4. After cleaning filter (2), return it to its original position and close
cover (1).
[CLEANING FRESH AIR FILTER]
1. Use starter key to unlock cover (1) at the rear left of the
operator’s cab.
2. Open cover (1) by hands, secure it in position with cover support
lever (3), then remove filter (2) from the inside.
3. Clean the filter with compressed air. If there is oil on the filter, or
if the filter is extremely dirty, wash it in a neutral agent. After
rinsing it in water, dry it thoroughly before using it again.
Replace the filter with a new part every year. If the clogging of
the filter cannot be removed by blowing with air or washing in
water, replace the filter immediately.
4. After cleaning, return filter (2) to its original place.
5. Remove support lever (3), and close the cover (1). When doing
this, lock it with the starter key. After locking it, do not forget to
remove the starter key.
The FRESH filter must be installed facing in the correct direction.
When installing, insert the long (L) end of filter (2) into the filter
case first. If the short (S) end is installed first, cover (1) will not
close.
To Next Page
