6-18

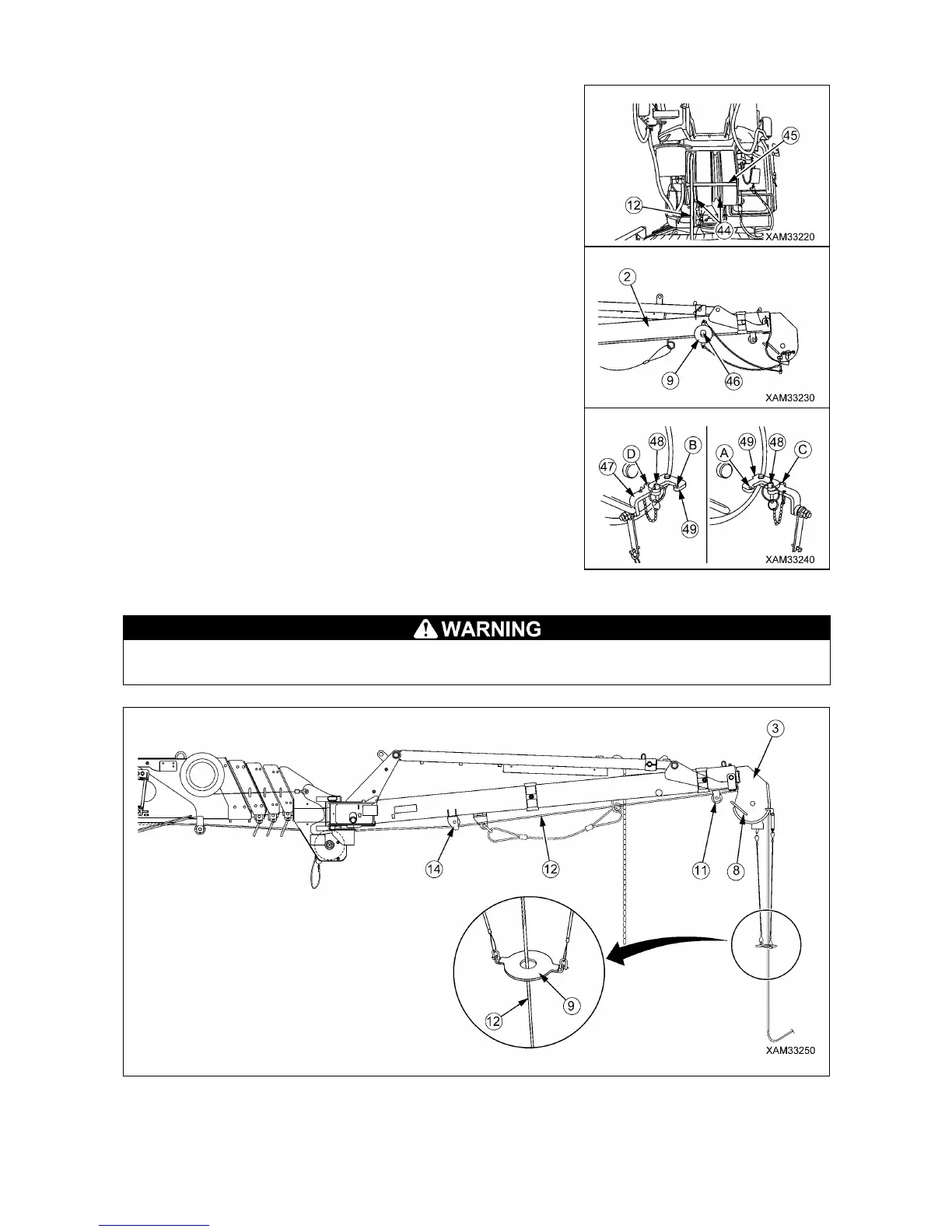

15. Stop the engine then take the wire rope off from the wire rope
holder at the boom tip. Arrange the wire rope to go straight
through the sheave of the main boom tip to the Fly-jib.
16. Detach the over-hoist detector weight (9) from the weight
hanger (46) on the right side of the Fly-jib (2).
17. Extract the linchpin (48) at the tip of No.2 Fly-jib and turn the
wire bracket (47) of the over-hoist detector weight. Match the
hole (B) of the wire bracket (49) and hole (D) of the wire bracket
(47), then insert the linchpin (48). When inserted, ensure the ring
is turned to lock it.
18. Arrange the wire rope (12) to pass below the sheave (14) and over the sheave (11) and sheave (8),
then through the center of the weight (9).
The wire rope must be correctly installed. Otherwise incorrect fitting will damage the wire rope
and result in a potentially serious hazard.
To Next Page
