6-28

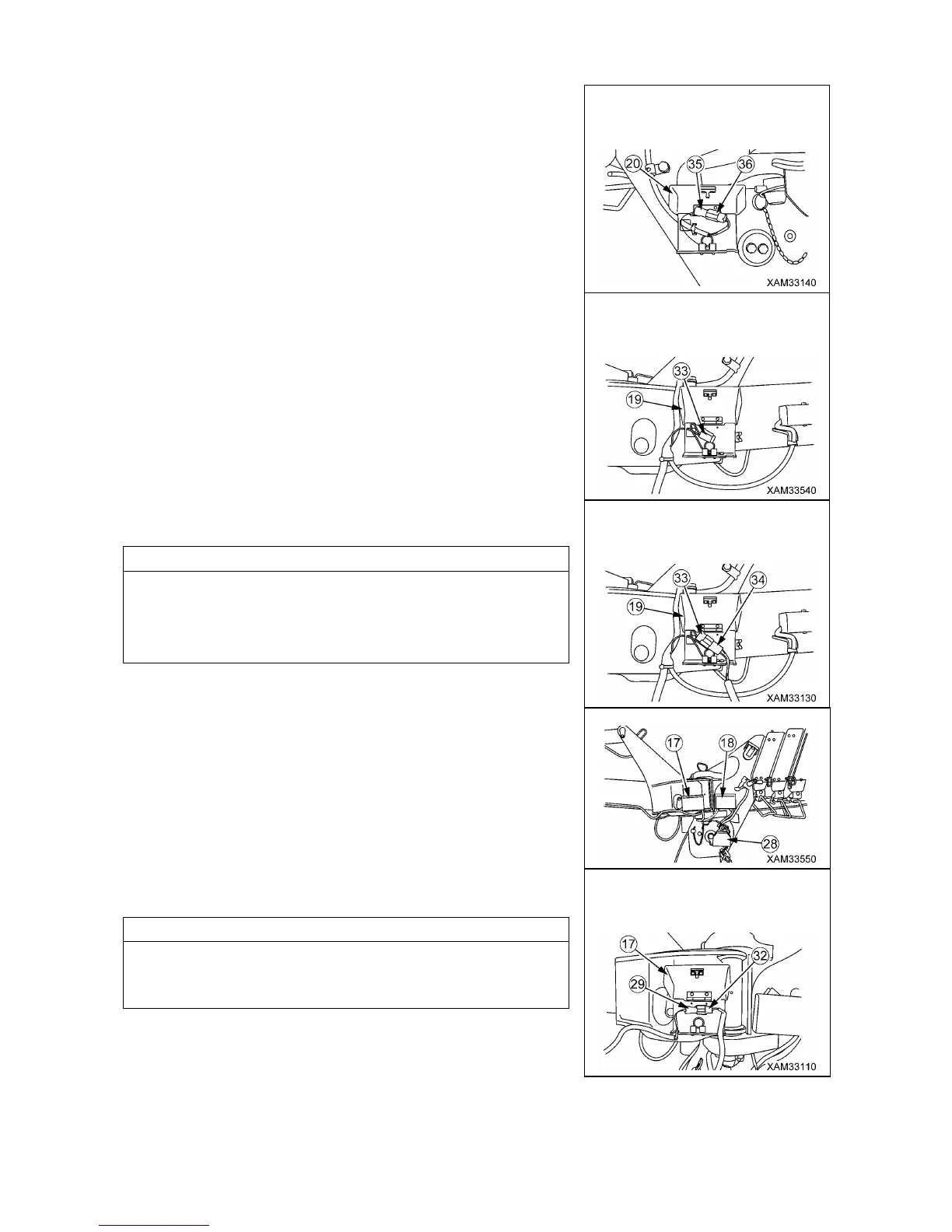

(2) Connect the harness connector (36), as extracted in (1)
above, to the storage connector (35) and the close the cover.
(3) Open the cover of the harness connection part (19: Fly-jib
side).
(4) Connect the harness connector (34), as extracted in (1)
above, to the storage connector (33) and the close the cover.
• Ensure that wire of the harness connector (34) is guided out of
the connector box through the hole cut in the bottom.
• When you close the cover, take care that the harness
connectors (34) and the storage connector (33) are within the
harness connection part.
5. Swap the harness connection part (17) and (18) as shown below
to switch and connect over-hoist detector
(1) Open the cover of the harness connection part (17: Fly-jib
side) and extract the harness plug (32) in the connector (29).
The removed harness plug (32) will be later connected into a
connector in the harness connection part (18: Main boom side).
Before harness exchange;
Fly-jib side:
After harness exchange;
Main boom side:
After harness exchange;
Fly-jib side:
Before harness exchange;
Fly-jib side:
To Next Page
