6-32

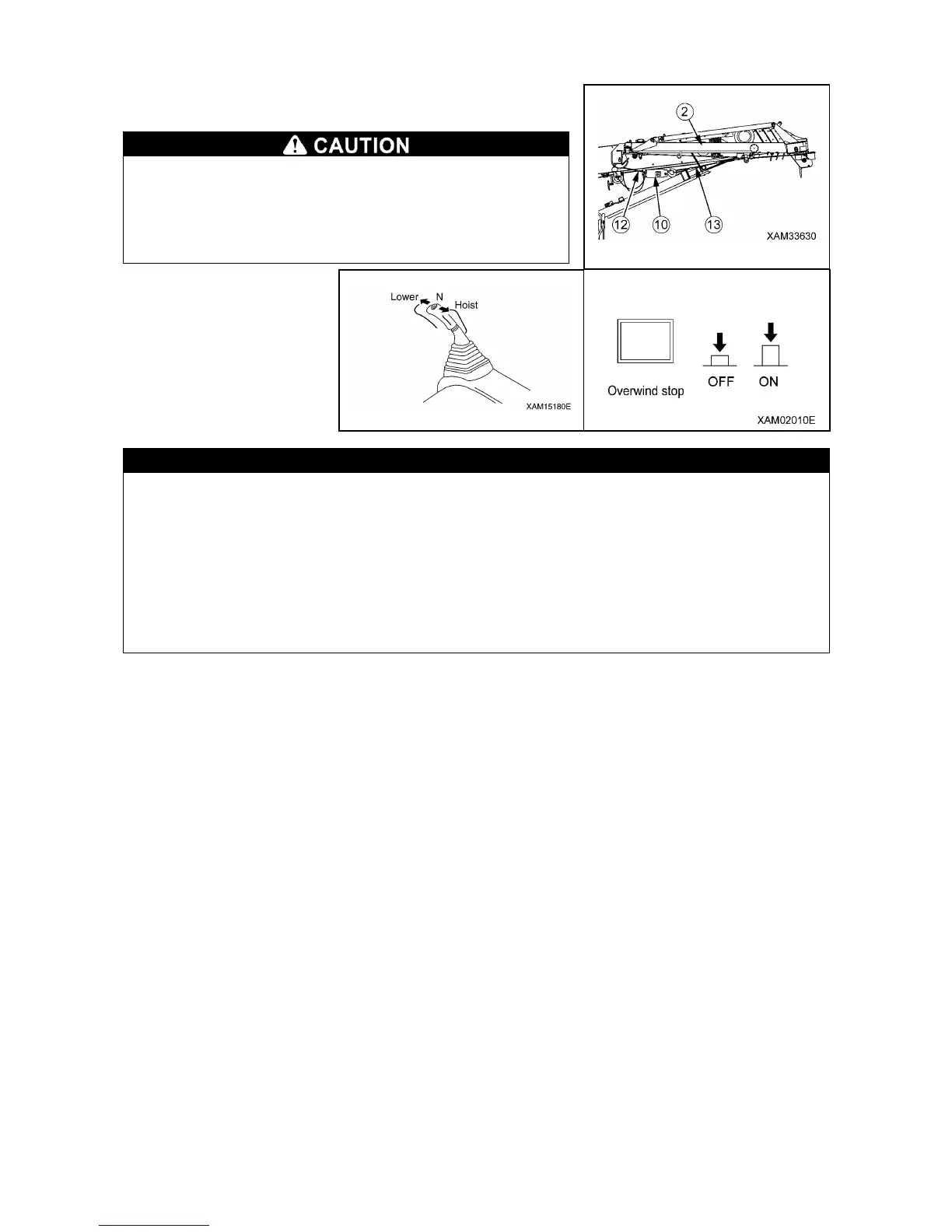

15. Keep pressing the over-winding cancel switch and wind the
winch slowly, to reduce the wire rope slack.
Never attempt hook stowage using the moment limiter
emergency stop cancel switch. The hook stowage mode is
not available and may result in damage to the bracket for
the hook stowage wire rope (13), main boom, or wire rope
(12). Always use the over-winding cancel switch to stow the
hook.
When the Fly-jib is not correctly stowed, the moment limiter display indicates as follows:
• "- - -" is flashing in each of the Actual load display, Rated total load display, Working radius
display, Rated radius display and Fly-jib angle display.
• Wire falls LEDs and Load capacity LEDs are flashing.
• Warning buzzer beeps intermittently.
In such events, check as follows:
• The Fly-jib is properly fixed by the position pin A (15) and position pin B (16) to stow in the side
of the main boom.
• The Fly-jib tilt angle detector harness and length detector harness are correctly connected.
(Refer to the instructions in 5. above).
