Mahr GmbH • Digimar 817 CLM

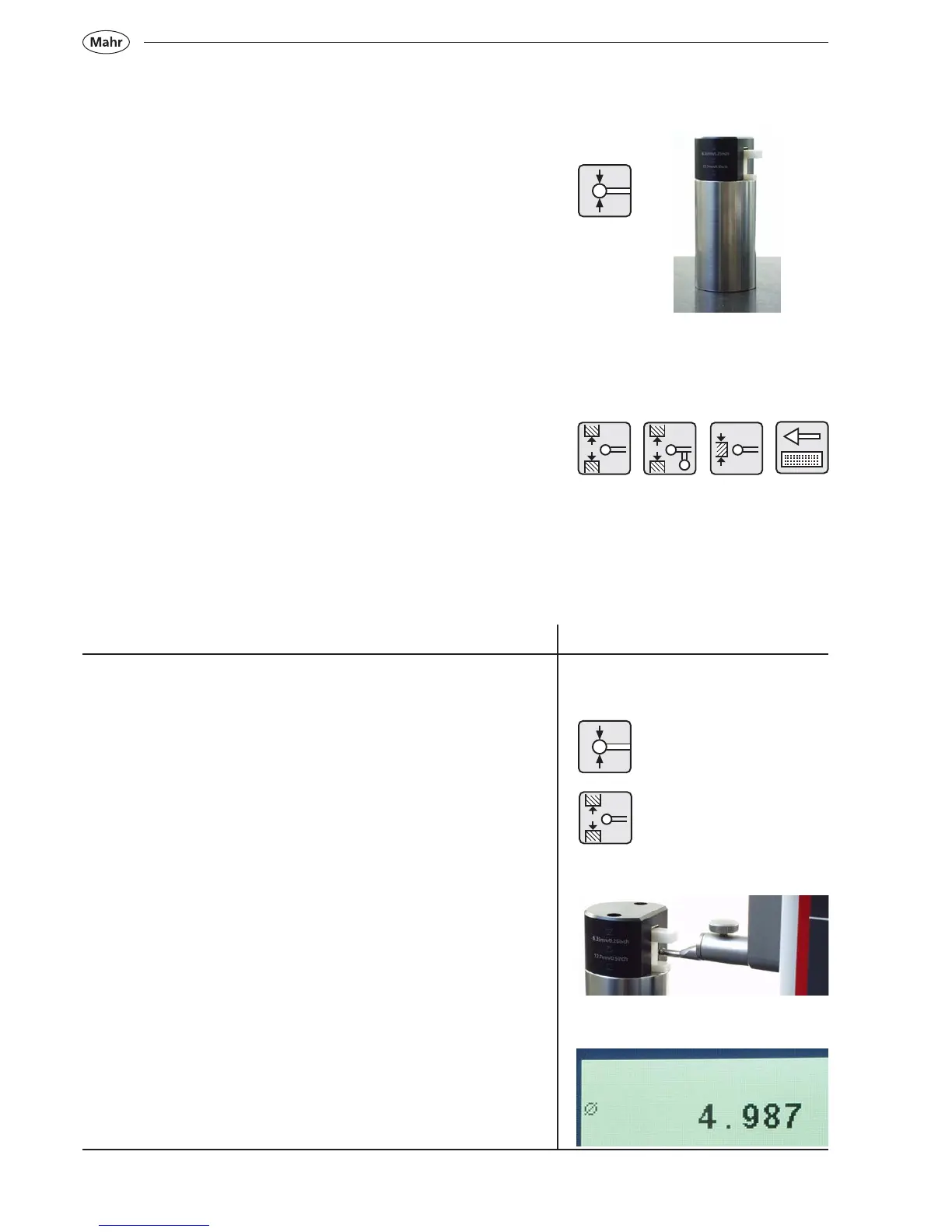

4.1 Standard calibration / calibrate a probe
4. Operating and measuring in detail
Press the „calibration“ key
Press the function key „calibrate using a groove“.
The probe automatically travels the center of the groove of the
setting standard
Slide the setting standard, so that the probe is inside the groove.
The groove will automatically be measured twice.
The determined probe constant will be displayed
Each calibration will automatically be conducted twice (x 2).
When calibrating the probe, it will automatically travel to the preset
height of the gage block, this value can be changed in the probe
calibration menu.
(See chapter 6.14.3 Probe calibration parameter)
Note:
The probe constant can be influenced by any of the following factors:
- Strain on the holder and the probe
- The reversal point of the measuring system
- The diameter of the probe
Attention:
The probe constant must be re-determined once a probe has been
exchanged.
The calibration of a taper probe can be found in Chapter 4.7!
4.1.1 Calibrating a probe using a setting standard
Description / Sequence Symbols / Pictures
F
Possibilities:
Groove Twin Ledge Taper
12,7 mm probe 6,35 mm probe
