56
Mahr GmbH • Digimar 817 CLM

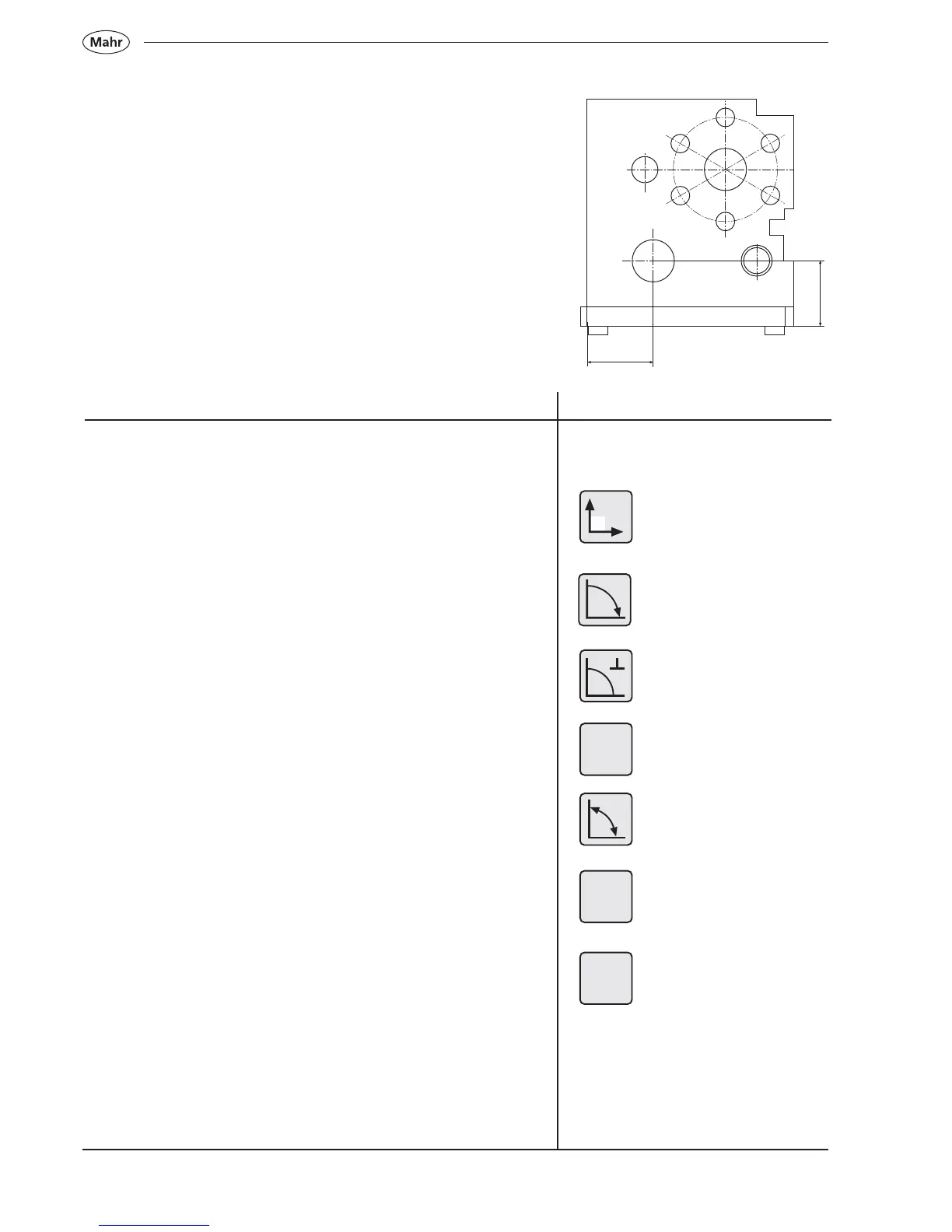

4.5 Measuring in 2D mode
2D Functions
Via, the 2D key the operator is led into the 2D mode.
The following menus will appear:
– Manually enter a tilting angle
– Measure the tilting angle
– Active the 2D mode
– Tilt the workpiece
With the variable function keys, the basic requirements for the
computation function are activated.
To deactivate the 2D mode press:
Description / Sequence Symbols / Pictures
An introduction to 2D
With that 817 CLM yon can conduct all the usual 2D measuring tasks,
as for example the computation of index circle (bestfit circle) or angles
and distances between bore holes. In addition the measured values of
both
Z-axis and X-axis can be measured and stored separately.
The procedures for 2D measurements are always the same; first
activate the 2D measurement function and measure the characteristics
in the
Z-axis. Then after a defined tilt or rotation of the workpiece (normally
90°) you can switch to measure in the X-axis and repeat the same
procedure to measure the characteristics in the X-axis. Finally, you can
conduct the required computations.
2D
a
a
z
x
2D
OFF
2D
ON
2D
ON
x
Z
B1
B2
B3
B4
