4.8 Variable function keys
4.8.1 Measuring a distance
Calculate the difference between 2 saved measuring results. In order to
calculate the distance 2 characteristics must be selected, the 817 CLM
will propose the last measured characteristics/ values, provided that they
seem suitable for further evaluation.
Using the arrow keys any characteristic or results can be selected (DISP
must be activated).
The selected characteristics will be shown in the display as A and B
Procedure:
– Contacting a plane from above F1
– Contacting a plane from above F2

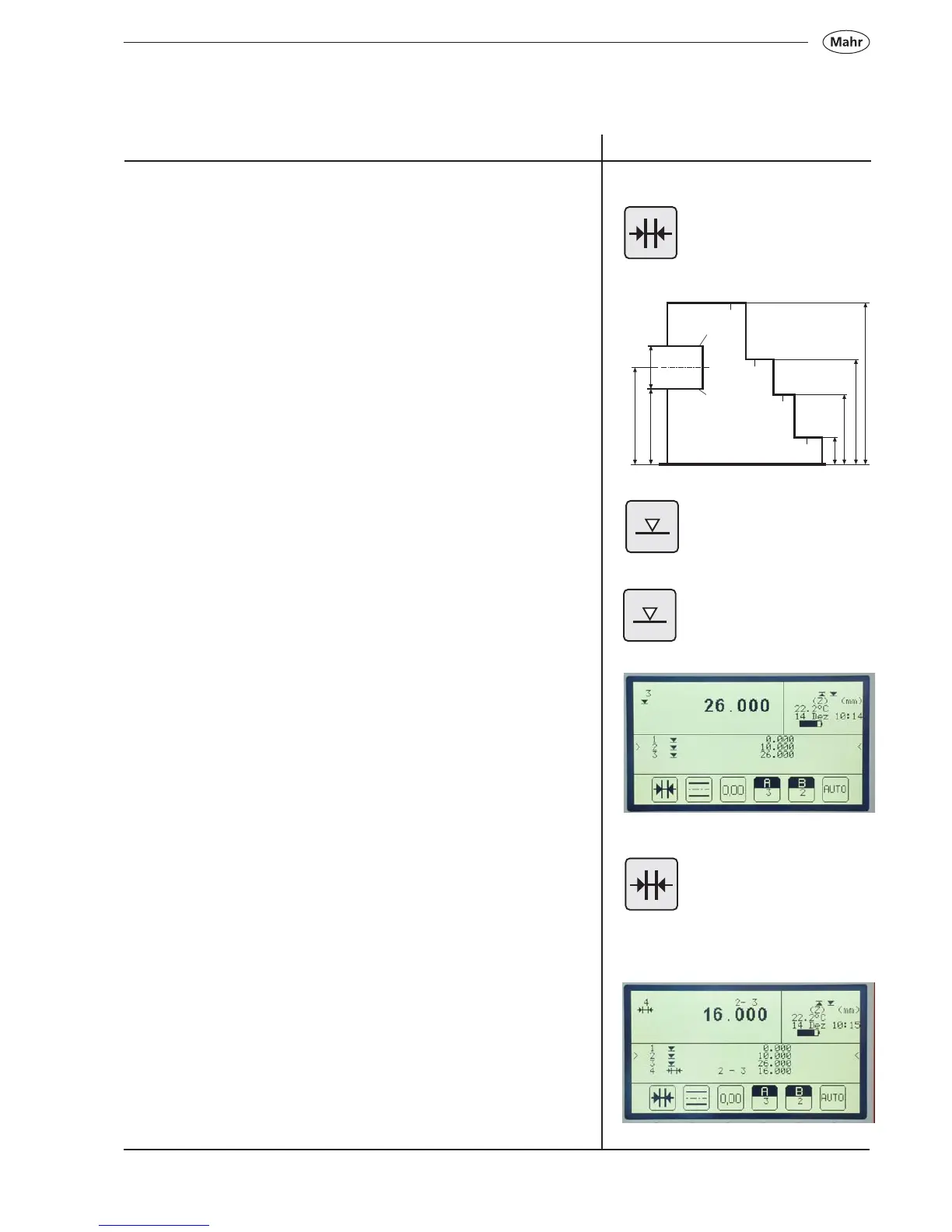

Description / Sequence Symbols / Pictures
– Distance - 16.000 will be shown in the display
The characteristics and the successful distance measurements
are shown in the display.
36
28
16
10
26
39
60
F6
F5
F4
F3
F2
F1
Nut
