Mahr Digimar 817 CLM - Reversal Point of a Shaft from above; below

51
Mahr GmbH • Digimar 817 CLM

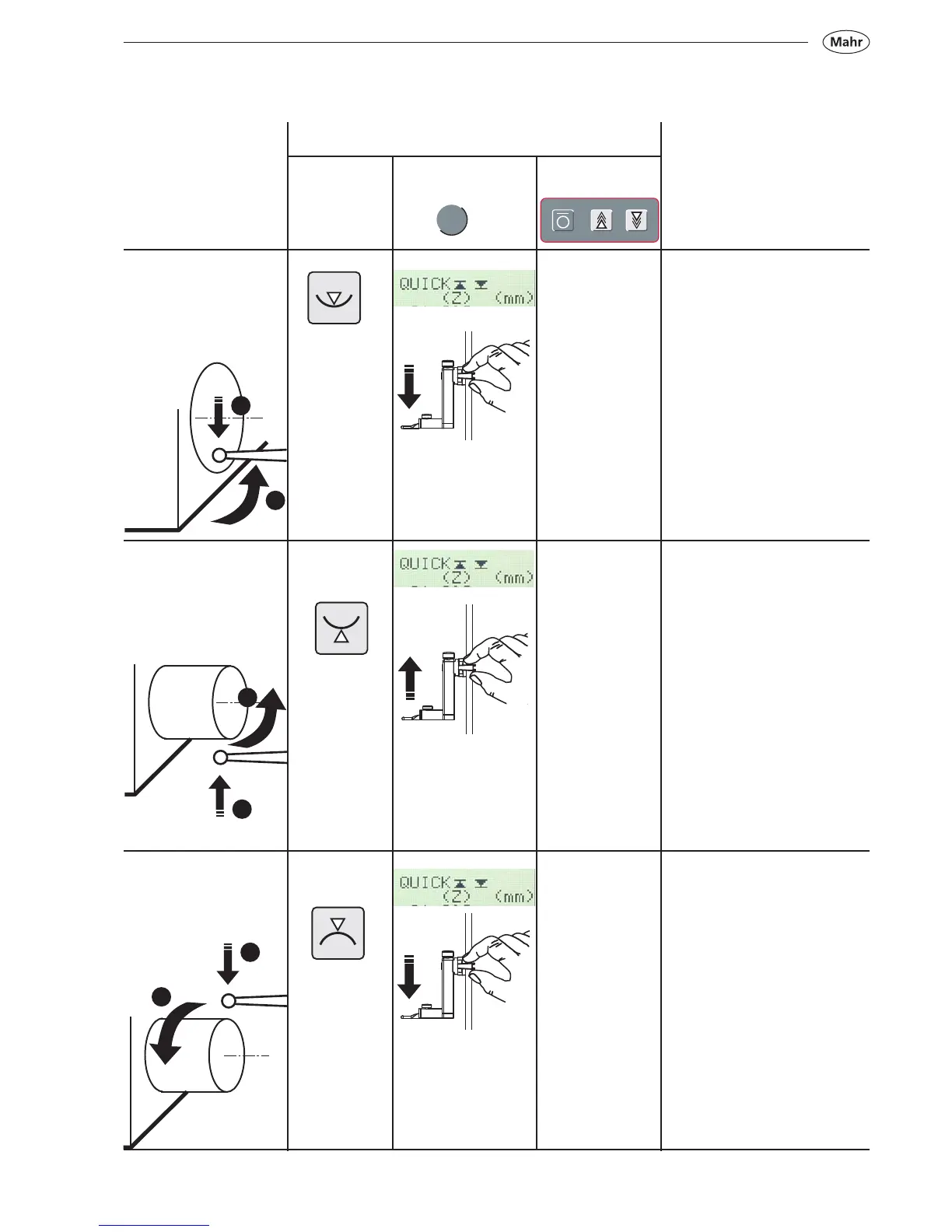

Measuring tasks Measuring procedure Results as shown
in the display
Function Quick-Mode Speed keys
key
4.3.8
Contact from above to
determine the reversal
point (minimum)
only available when
Quick-Mode settings
is set to automatic
recognition of
plane / bore
Contact from below to
determine the reversal
point (minimum)
only available when
Quick-Mode settings
is set to automatic
recognition of
plane / bore /
shaft
Contact from above to
determine the reversal
point (maximum)
only available when
Quick-Mode settings
is set to automatic
recognition of
plane / bore /
shaft
QUICK
MODE
1
2
1
2
1
2
Basic measuring functions
