6.14.3 Parameters for calibrating a probe
For the provided setting standard, the following
dimensions are specified:
Groove width = 12.700 mm
Ledge width = 6.350 mm
Starting point = 92.000 mm
When using another setting standard these parameters
can be changed.

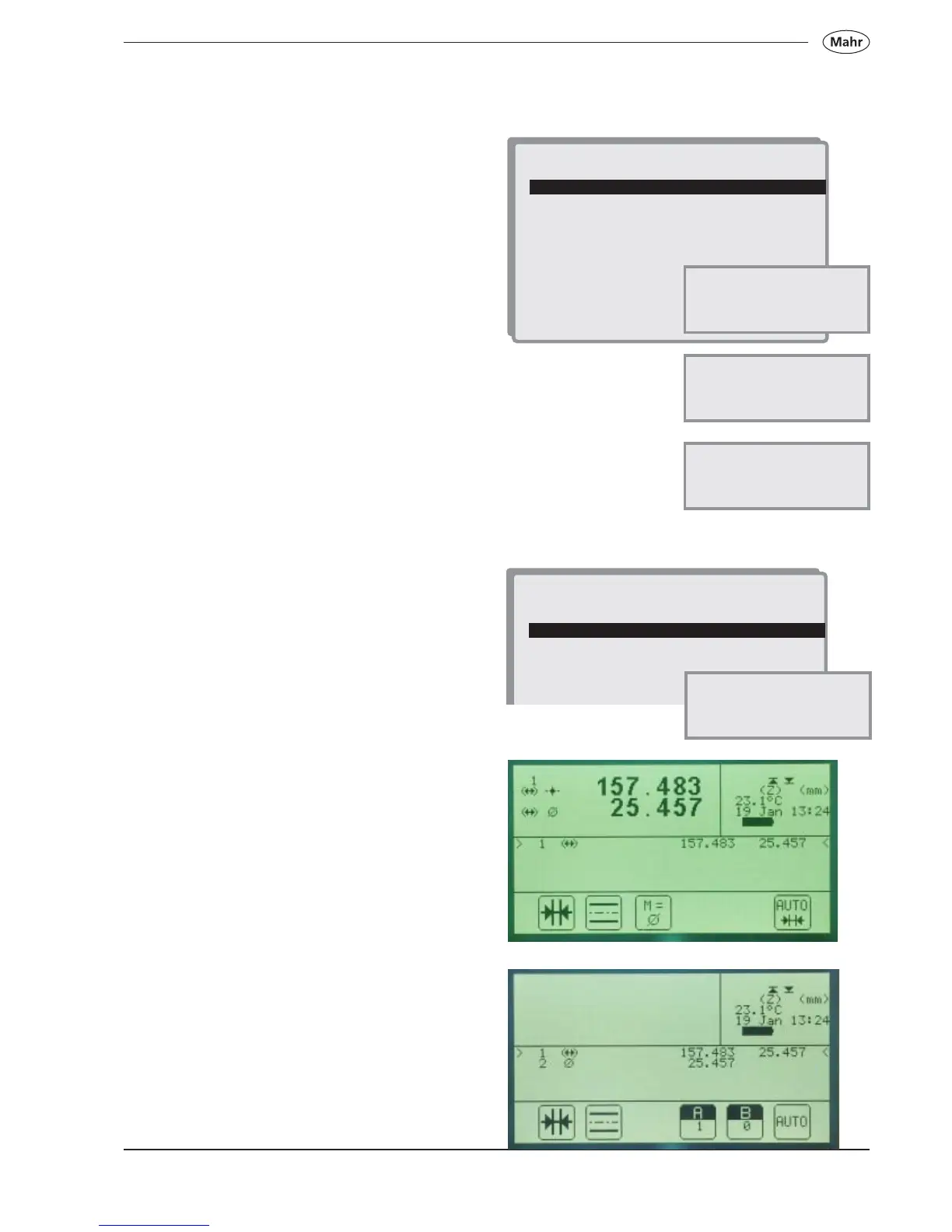

6.14.4 Function key F3
Probe calib. web
6.350
P. calib. groove height
92.000
1. <-_______
2. Temperature compensation
3. Probe calibration parameters
4. Function key F3
5. Enter password
6. Correction tables
7. Clear functions menu
8. Import language from USB
1. <-_______
2. Temperature compensation
3. Probe calibration parameters
4. Function-key F3
5. Enter password
6. Correction tables
7. Clear functions menu
8. Import language from USB
There is the possibility to set up the special functions,
e.g. that when measuring a bore hole only the diameter
will be saved.
P. calib. groove width
12.700
1. F3: Setting zero
2. F3: Store diameter
