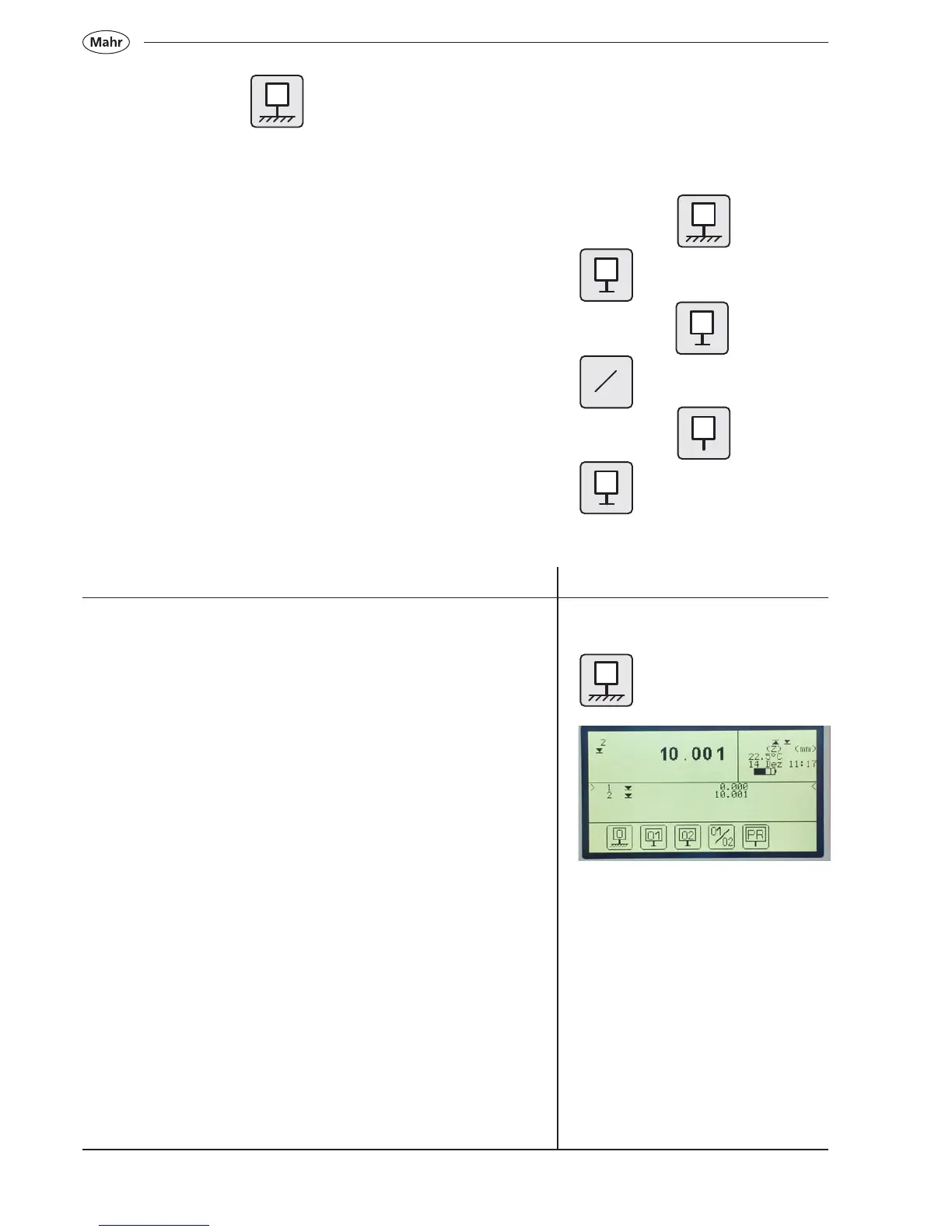

4.2.1 Set the zero point on the base plate
– Press the zero point key on the keypad
– Press the function „Zero point on the base plate“
– The probe travels automatically to the base plate, the zero
point is set
4.2 Zero points
• The workpiece zero point can be set only on an already determined characteristic
– Basic-zero point, base plate .....................................................................................
– Workpiece zero point 01 .............................................................
– Workpiece zero point 02 ...........................................................................................
– Change between set zero points ................................................
– Preset - alternative zero point ...................................................................................
– Zero point 03, when zero points 01 and 02 are already set .......
0
01
02
02
01
PR
0
Description / Sequence Symbols / Pictures
0
0
03
