Mahr Digimar 817 CLM User Manual

65
Mahr GmbH • Digimar 817 CLM

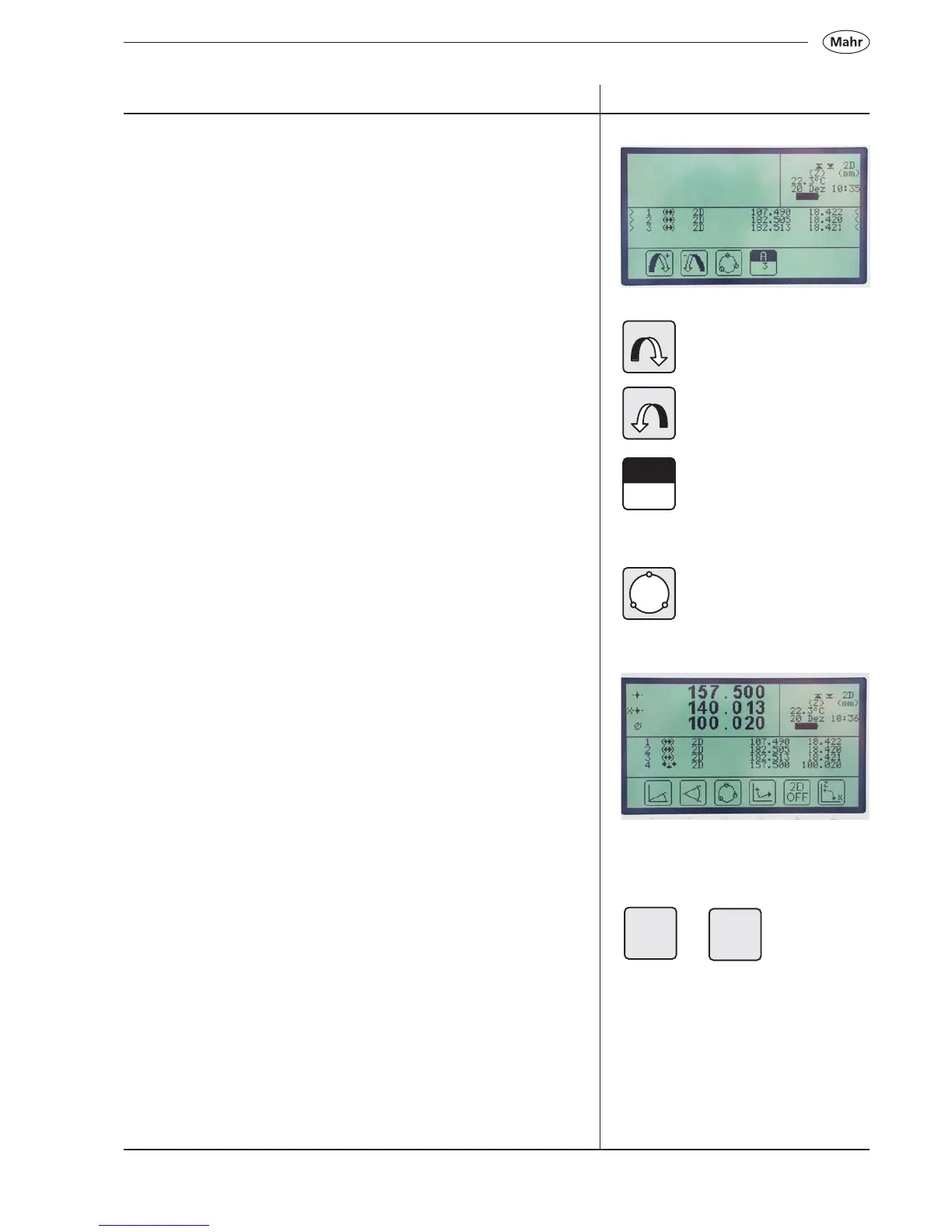

In the display appears the following
the Z coordinates,
the X coordinates
and the diameter of the index circle
Description / Sequence Symbols / Pictures
?
x
5
?
z
6
Error report appears when:
- No exact allocation has been given
- The numbers of measured bores are different in each axis
The index circle is calculated from the center of the 3 bore holes.
Adding the characteristics (bore holes/shafts) to be used for the
calculation of the index circle.
Deselecting the characteristics (bore hole/shaft) to be used for the
calculation of the index circle.
Number of bore holes/shafts
– Active the calculation of the index circle
+

A
3
