Manitowoc Published 05-03-17, Control # 228-03 2-29
16000 SERVICE/MAINTENANCE MANUAL HYDRAULIC SYSTEM
2
4
P2300
1
5 6 7
3
2
Inside Adapter Frame

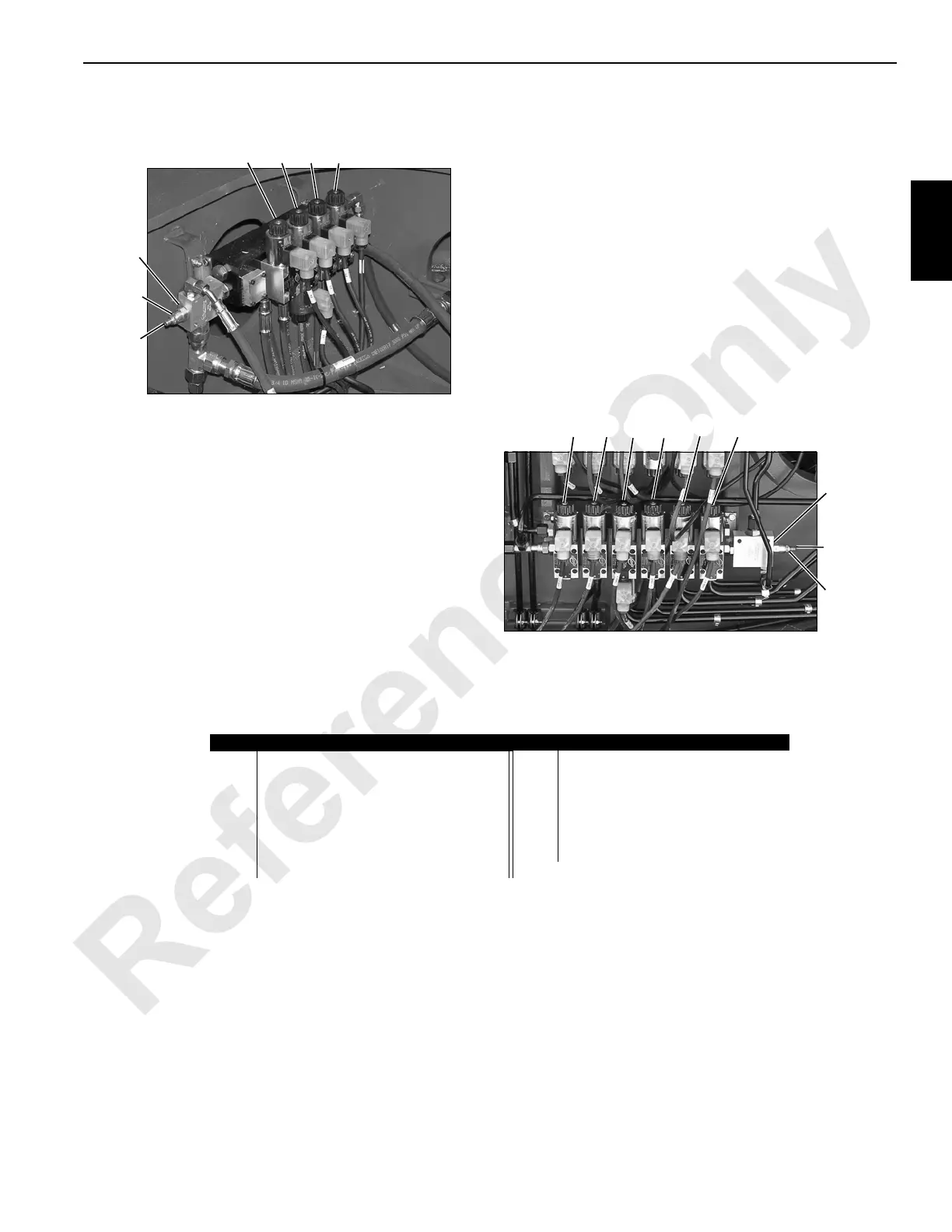

FIGURE 2-27
P2308
10
9
12
11
138
1
3
2
Left Side of Rotating Bed
Item Description Item Description
1 Pressure Reducing Valve 8 Drum 2 to Drum 1 Diverting Solenoid
2 Lock Nut – 0.562 inch Hex 9 Drum 1 to Drum 2 Diverting Solenoid
3 Adjusting Screw – 0.188 inch Internal Hex 10 Drum 4 Pawl Solenoid
4 Swing Brake Solenoid Valve 11 R Travel to Drum 4 Diverting Solenoid
5 Swing Lock Solenoid Valve (past
production)
12 L Travel to Drum 3 Diverting Solenoid
6 Travel Brake Solenoid Valve 13 Drum 4 to Drum 5 Diverting Solenoid
7 Travel 2-Speed Solenoid Valve
