Manitowoc Published 05-03-17, Control # 228-03 5-17
16000 SERVICE/MAINTENANCE MANUAL HOISTS
5

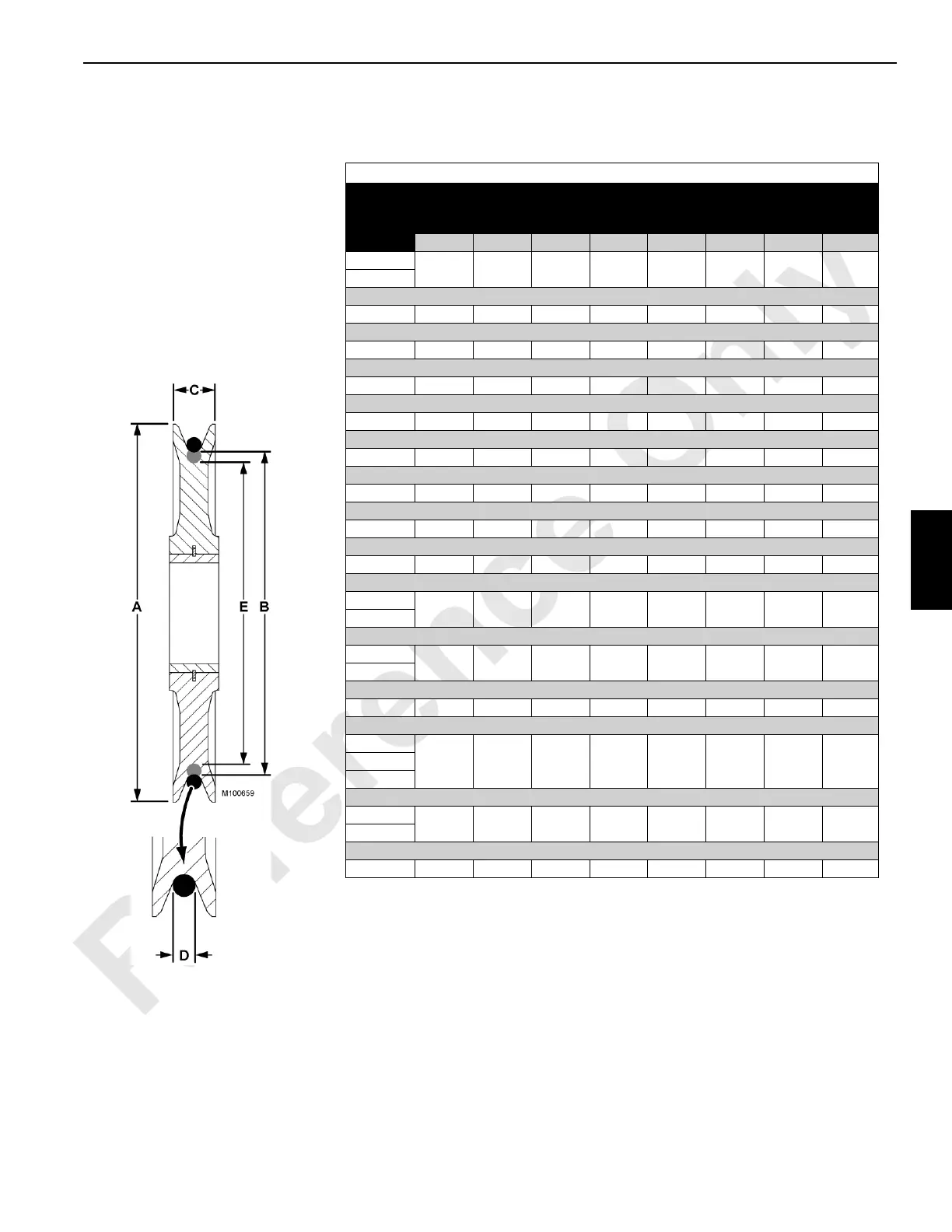

FIGURE 5-14
PLASTIC SHEAVE DATA
Sheave
Part No.
A
Outside
Diameter
B
Tread Diameter
C
Width
D
Rope Diameter
mm inch mm inch mm inch mm inch
912738
335,0 13.19 290,1 11.42 45,0 1.77 16 5/8
631056
631054 335,0 13.19 290,1 11.42 45,0 1.77 22 7/8
631065 406,4 16.00 339,6 13.37 55,1 2.17 14 9/16
631071 406,4 16.00 352,6 13.88 55,1 2.17 16 5/8
631526 489,0 19.25 422,4 16.63 50,8 1.94 22 7/8
631527 489,0 19.25 422,4 16.63 50,8 1.94 16 5/8
631055 500,1 19.69 447,0 17.60 47,0 1.85 22 7/8
631067 500,1 19.69 450,9 17.75 50,0 1.97 19 3/4
631529 508,0 20.00 431,8 17.00 76,2 3.00 25 1
631519
584,2 23.00 511,0 20.13 57,2 2.25 22 7/8
631520
631084
584,2 23.00 511,0 20.13 63,5 2.50 22 7/8
A00083
631102 584,2 23.00 511,0 20.13 63,5 2.50 25 1
631082
685,8 27.00 584,2 23.00 76,2 3.00 25 1631103
A00051
631096
685,8 27.00 584,2 23.00 76,2 3.00 28 1.18
A00050
631100 762,0 30.00 685,8 27 76,2 3.00 29 1-1/8
E = Replacement dimension
E = B – 5 mm (3/16 in) (maximum)
If tread print exists in root of sheave
groove, measure to maximum tread
diameter.
