Manitowoc Published 05-03-17, Control # 228-03 7-17
16000 SERVICE/MAINTENANCE MANUAL POWER TRAIN
7

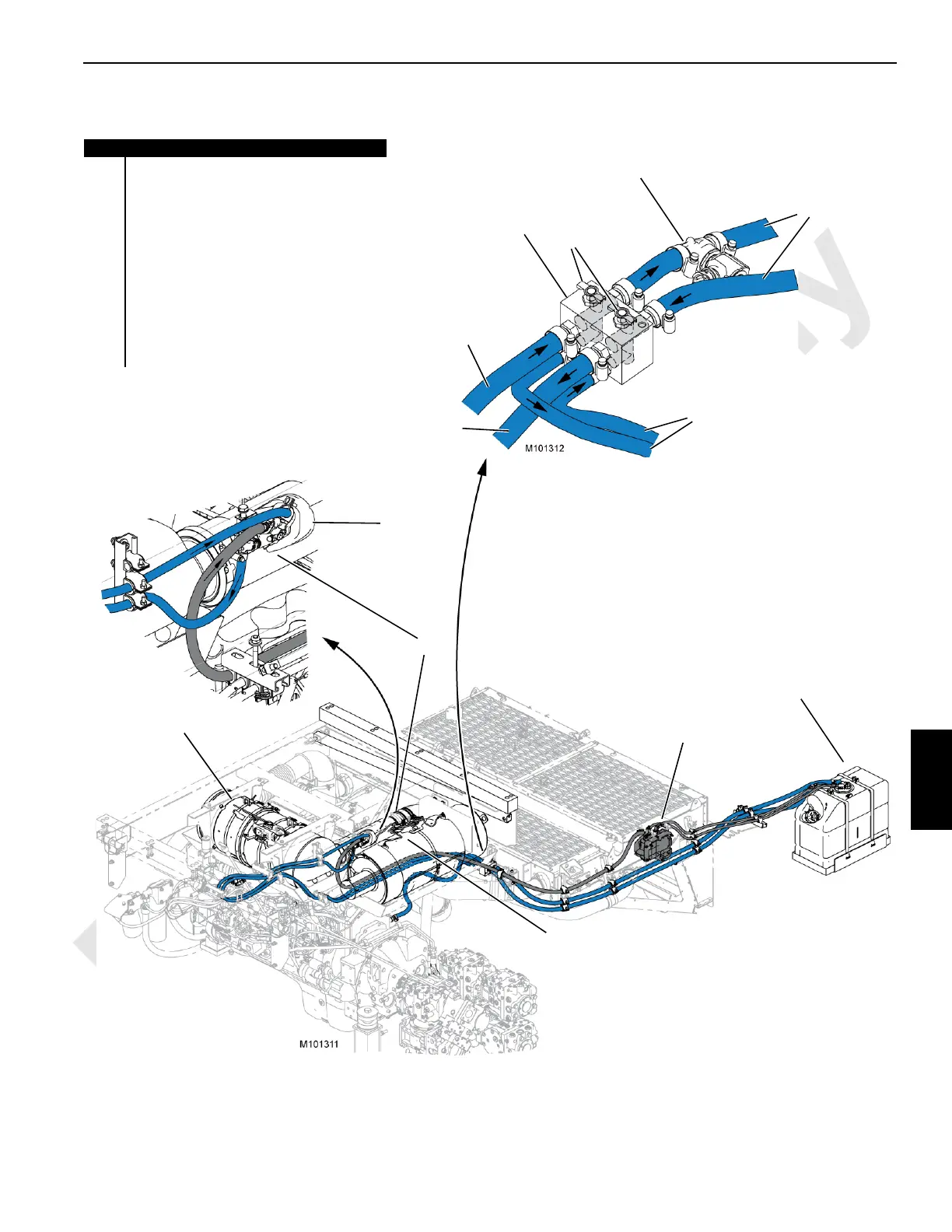

FIGURE 7-12
Item Description
1 Coolant Manifold Block
2 Air Bleed Valves
3 Coolant Flow Control Solenoid Valve
4DEF Tank
5 DEF Supply Module
6 Selective Catalytic Reduction (SCR)
Module
7 Decomposition Reactor Tube (DRT)
Module
8 DEF Dosing Module
9 Diesel Particulate Filter/Diesel Oxidation
Catalyst Module (DPF/DOC)
2
3
4
Cooling Flow for
DEF Dosing Module
Heating Flow for
DEF Tank
Coolant from Engine
Coolant to Engine
1
5
7
8
9
BLACK = DEF hose
BLUE = coolant hose
6
