INTRODUCTION 16000 SERVICE/MAINTENANCE MANUAL
1-72
Published 05-03-17, Control # 228-03
Proportional
Relief Valve
Suction
Manifold
Variable Accessory
Pump 400 to 5,000
psi
(28 to 345 bar)
To Telescopic
Beam Pins
Pressure Control
Pilot
3,000 psi
(207 bar)
M16-10
M16-11
HS-68
Six Bank Valve Manifold
HS-83
HS-82
HS-75
HS-74
HS-77
HS-76
Left Wheel Assembly with Brake - Clockwise
HS-86
HS-87
Pressure
Reducing
500 psi (35 bar)
To Right Wheel
Assembly Brake
Proportional
Relief Valve
Suction
Manifold
Variable Accessory
Pump 400 to 5,000
psi
(28 to 345 bar)
To Telescopic
Beam Pins
Pressure Control
Pilot
3,000 psi
(207 bar)
HS-68
Six Bank Valve Manifold
HS-83
HS-82
HS-75
HS-74
HS-77
HS-76
Left Wheel Assembly with Brake - Counterclockwise
HS-86
HS-87
Pressure
Reducing
500 psi (35 bar)
To Right Wheel
Assembly Brake

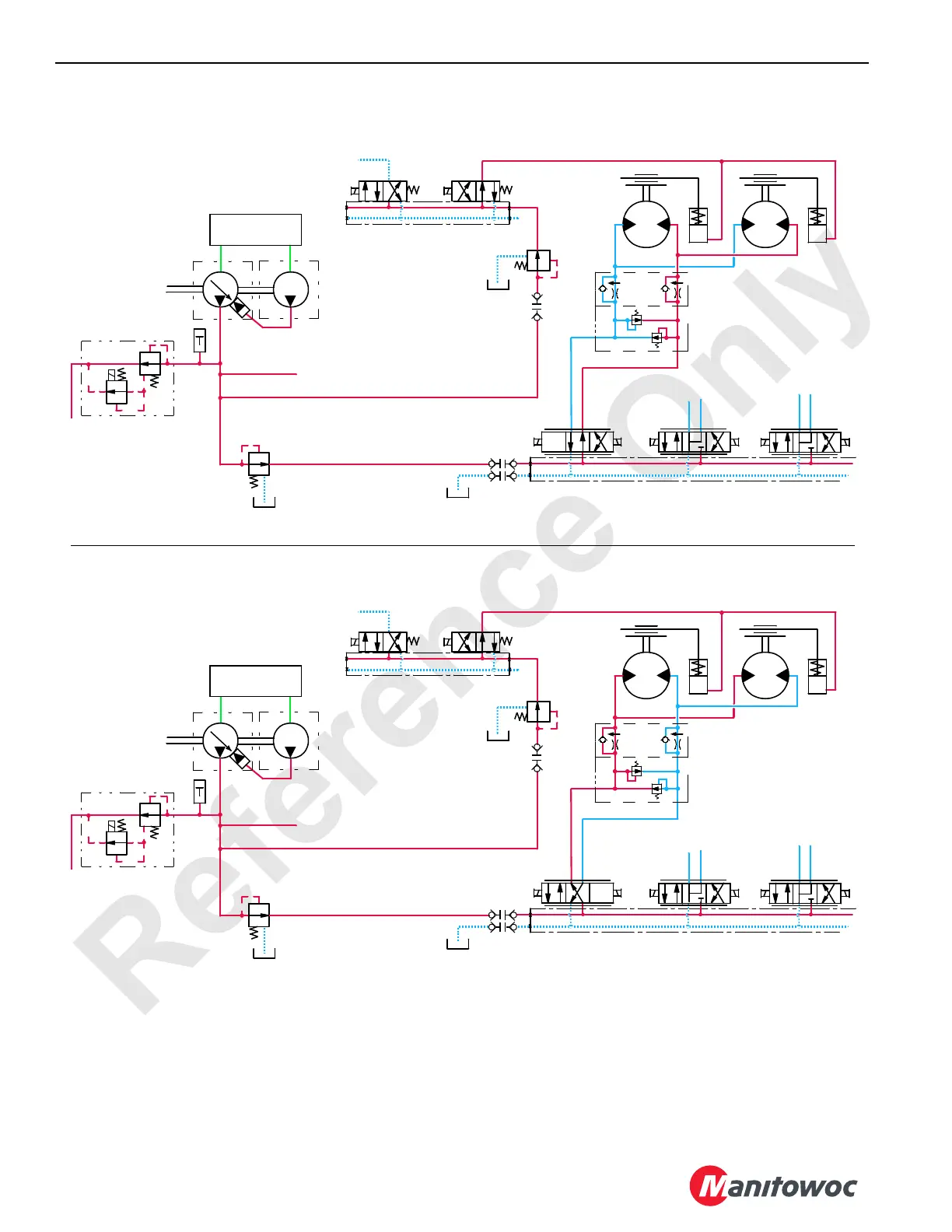

FIGURE 1-56
