OPERATING CONTROLS AND PROCEDURES 2250 OPERATOR MANUAL
3-50
Published 06-24-16, Control # 241-01
View A
View D
View FView E
A1053
Air Valve
Junction Box
A468
Connection for Setup
Remote Controller
Remote Start
Junction Box
2
1
4
3
20 21 22 23 24
17
18
5
19
Jacking Remote
Controls
7
Setup Remote
Controls
Remote Controllers Stored
Behind Enclosure
15 16 8
14
13
10
5
9
12
11
View C
Item Description
1 Engine Run/Stop Switch
2 Engine Start Switch
3 Engine Speed Switch
4 Hydraulic Disconnect Switch
(rotating frame quick-disconnect)
5Power Switch
6Not Used
7 Gantry Cylinders Switch
8 Boom Butt Cylinder Switch
9 Backhitch Pins Switch
10 Boom Hinge Pins Switch
11 Upper Counterweight Pins Switch
12 Lower Counterweight Pins Switch
13 Right Crawler Frame Pins Switch
14 Left Crawler Frame Pins Switch
15 Rigging Winch Switch
16 Speed Control Knob
17 Rear Rotating Frame Pins Switch
18 Front Rotating Frame Pins Switch
19 Level Warning Light
Item Description
20 Right Rear Jacking Cylinder
Switch
21 Left Rear Jacking Cylinder Switch
22 Right Front Jacking Cylinder
Switch
23 Left Front Jacking Cylinder Switch
24 All Rotating Frame Jacking
Cylinders Switch
Item Description
Auxiliary Valve Junction Box
Connection for Jacking
Remote Controller
81016529_1

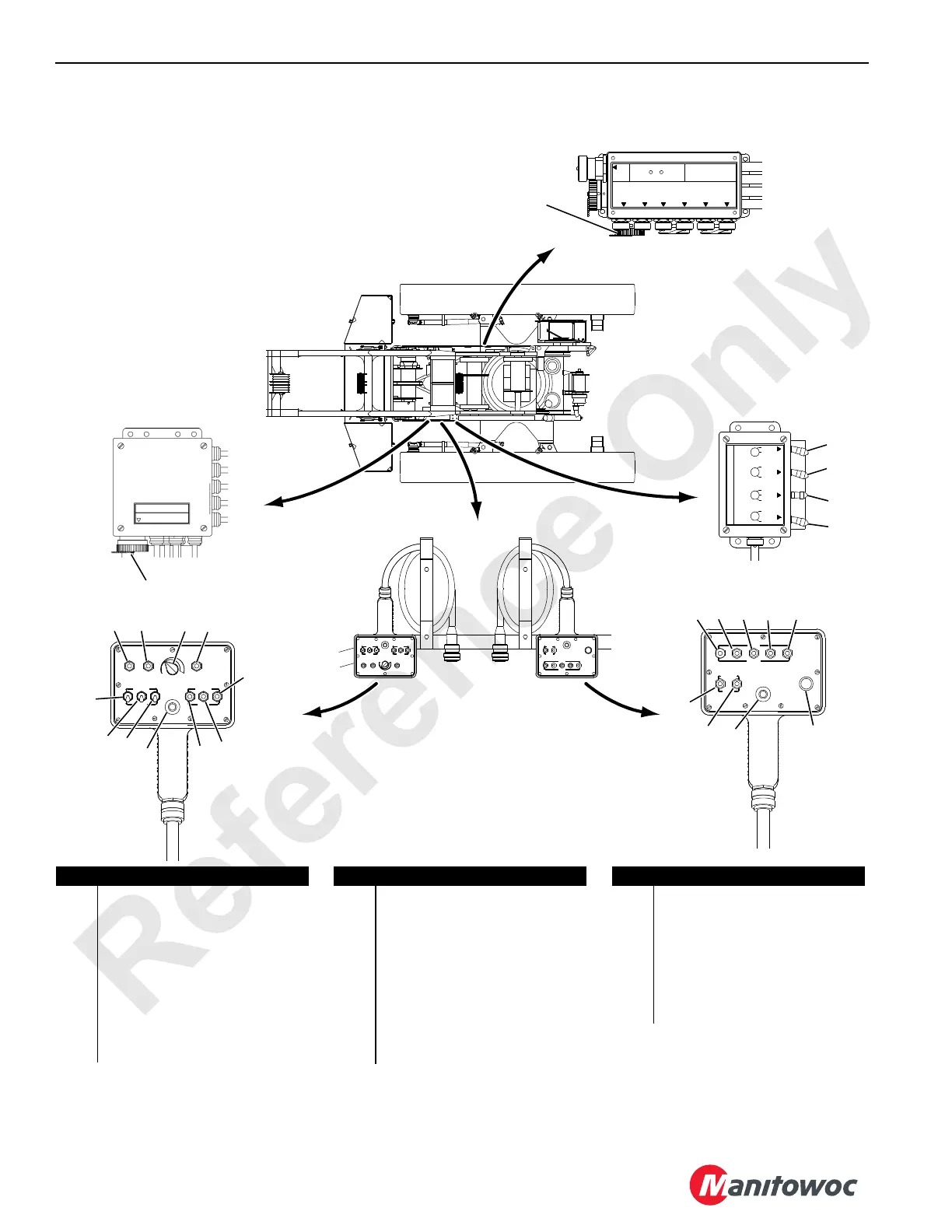

FIGURE 3-29
View A
View B
