Reference Only
SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-132
Published 06-24-16, Control # 241-01

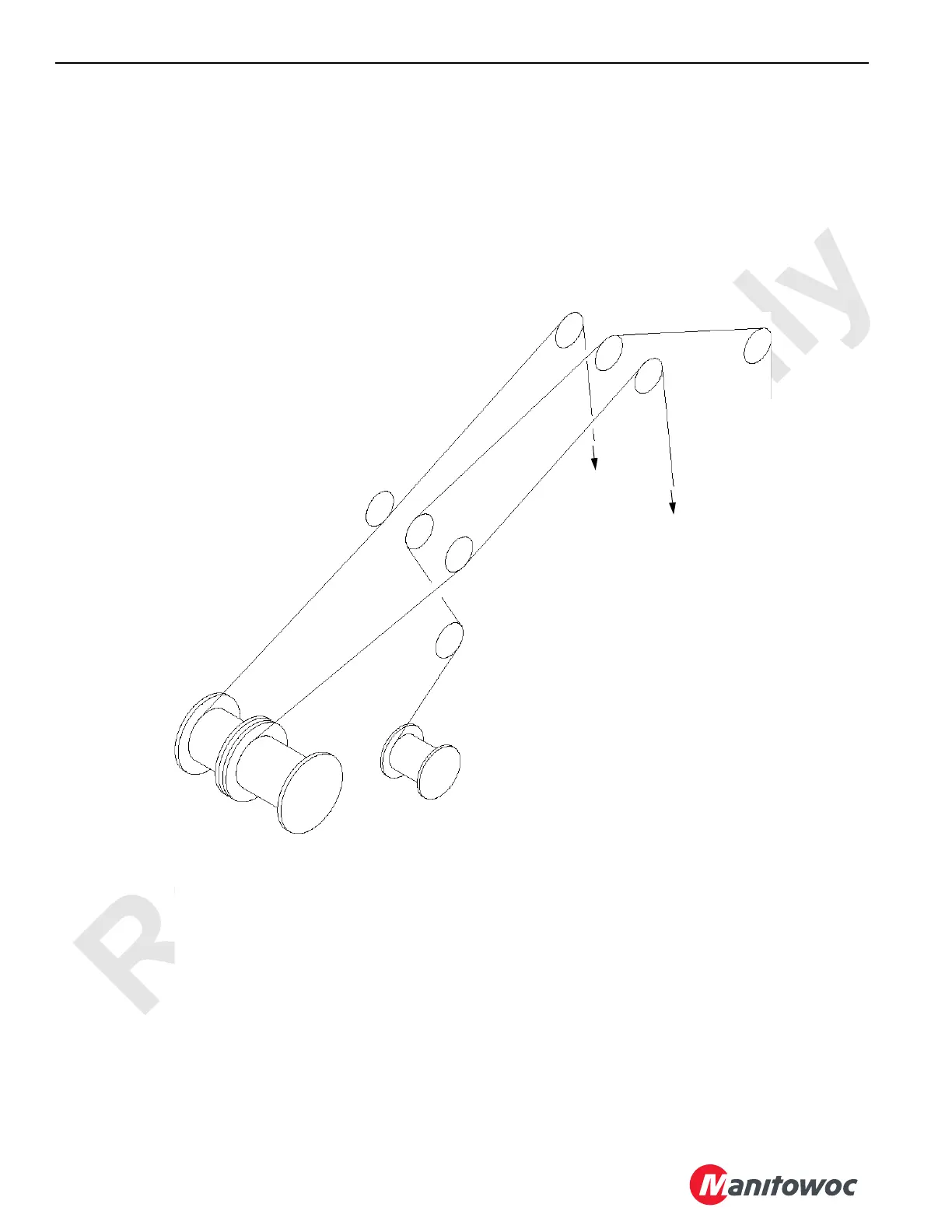

3 Lines Up Top of Boom
Bottom of
Boom Butt
Guide Sheave
Top of
Boom Butt
Guide Sheave
Boom Top
Guide Sheave
Luffing Hoist/
Auxiliary Drum
Left
Rear
Drum
Right
Rear
Drum
Upper
Boom Point
To Lower
Boom Point
See Opposite Page for Guide Sheave
Identification and Positioning
FIGURE 4-75 continued
