SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-74
Published 06-24-16, Control # 241-01
Identifying Boom and Jib Components

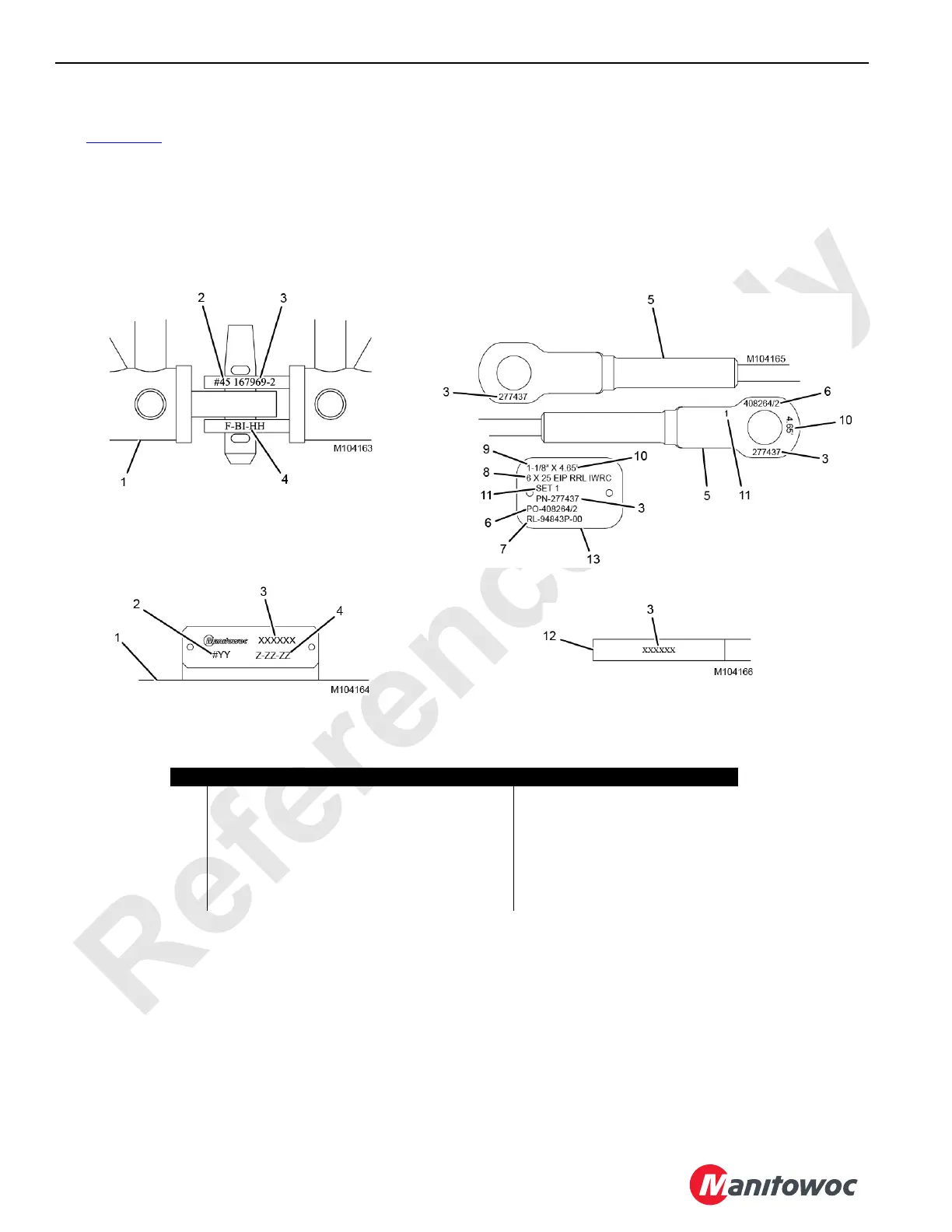

See Figure 4-40 for the following information.
Boom and jib sections are marked for proper identification
(see Views A and B).
Boom and jib pendants are marked for proper identification
(see View C).
Boom straps and links are marked for proper identification
(see View C).
NOTE: The markings can vary depending on when your
crane was produced and the original equipment
manufacturer.
Item Description Item Description
1 Boom or Jib Chord 8 Wire Rope Type
2 Boom or Jib Number 9 Diameter
3 Manitowoc Cranes Part Number 10 Length
4 Manitowoc Cranes Manufacturing Code 11 Set Number
5 Pendant 12 Strap or Link
6 Manitowoc Cranes Purchase Order Number 13 Aluminum Tag (if equipped)
7 Manufacturer's Number
FIGURE 4-40
View A
View D
View C
View B
