INTRODUCTION 2250 OPERATOR MANUAL
1-6
Published 06-24-16, Control # 241-01

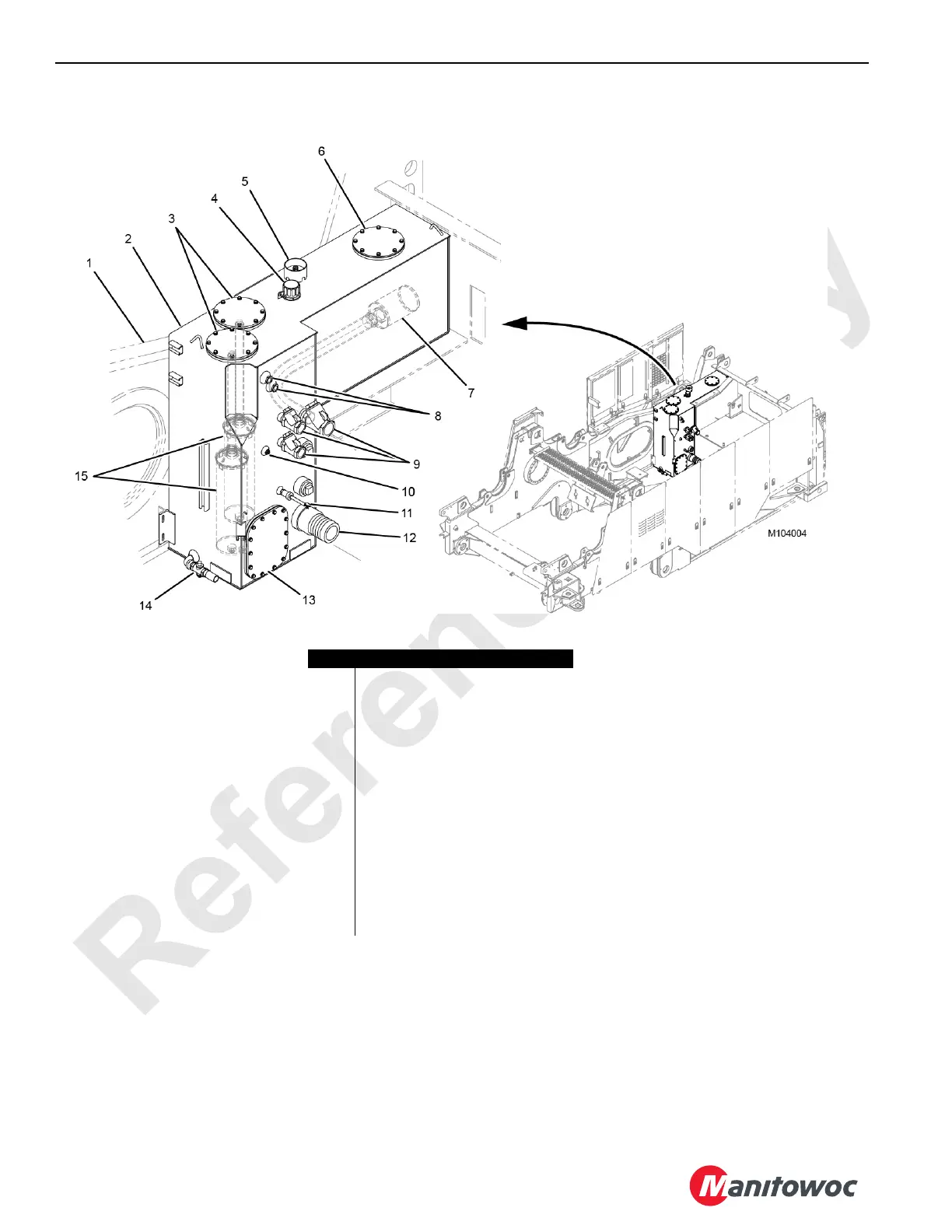

Hydraulic Tank Components
Item Description
1 Rotating Bed
2 Hydraulic Oil Reservoir
3 Filter Access Cover (qty 2)
4 Fill Cap
5 Level Gauge
6 Clean-Out Cover
7Diffuser
8 Sight Window (qty 2)
9 Swing Check Valve (qty 3)
10 Temperature Sending Unit
11 Pressure Transducer
12 Hose Adapter
13 Clean-Out Cover
14 Drain Valve
15 Filter (qty 2)
FIGURE 1-5
