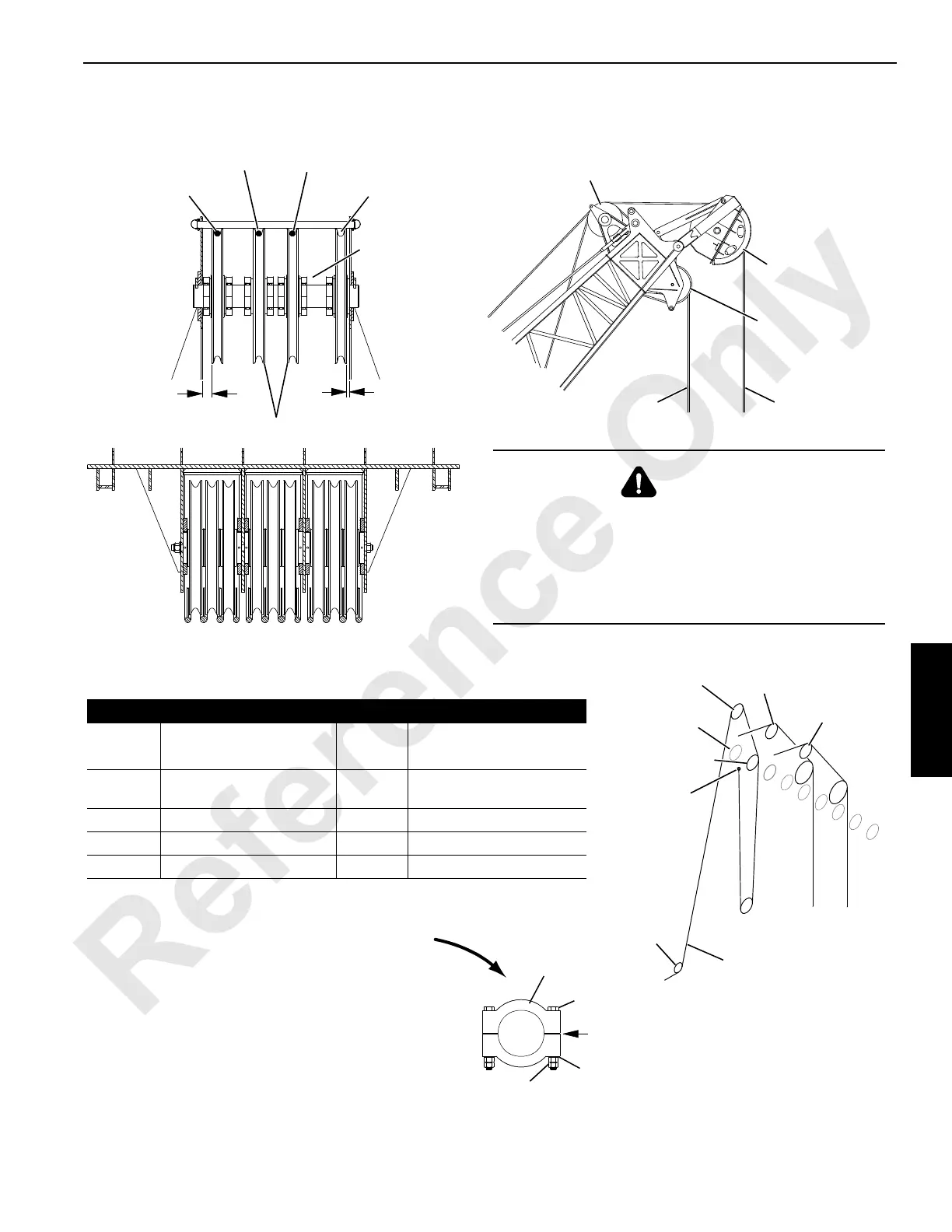

2250 OPERATOR MANUAL SETUP AND INSTALLATION
4
Clamshell Reeving—Heavy Lift Boom with Clamshell Upper Boom Point
Lower
Boom
Point
Boom Top
Guide Sheaves
Front Drum
Clam
Rear Drum
Clam
Rear Drum
Liftcrane
Location of Guide Sheaves with Load Line
Going to Lower Boom Point Sheave Indicate
d
Front Drum Sheave Rear Drum Sheave
Load Line
to Sheave
Liftcrane (NOTE 2)
Load Line
to Sheave
Liftcrane (NOTE 2)
Dimension A Dimension B
S4
271 mm (10.69 in)
NOTE 4 & NOTE 5
S9 16 mm (0.62 in) NOTE 3
S3 125 mm (4.92 in) NOTE 4 S8 52 mm (2.06 in) NOTE 2
S2 52 mm (2.06 in) NOTE 4 S7 121 mm (4.75 in) NOTE 4
S1 16 mm (0.62 in) NOTE 2 S6 265 mm (10.44 in) NOTE 4
A
B
For Clamshell Operation,
Position Sheaves In line with Upper Boom Point Sheaves
S
1
S
2
S
3
S
4
S
5
S
6
S
7
S
8
S
9
Tighten each side equally to
provide an equal gap. See
NOTE 1 for torque value.
Clamp
Bolt
Nuts
Lock Washer
A616
Dead-End
Socket and Wedge
S2
Boom Top
Guide Sheaves
Lower
Boom
Point
To Cl am
Bucket
Guide Sheave
Under Boom
Optional Load Line
from Luffing Hoist
Lower
Boom
Point
Boom Top
Guide Sheaves
Upper Boom Point
for 1-3/8 in Clam
Wire Rope
See NOTE 1
From
Front Drum
From
Rear Drum
A1198
WARNING
Falling Load Hazard!
Prevent possible injury. When using the luffing hoist wire
rope as a load line (routed under boom), do not operate
with the boom higher than 75°. Wire rope will rub against
the wire rope guide frame under the boom top. The wire
rope could break, allowing the load to fall.
Liftcrane
Load Line
Clamshell
Load Lines
Front Drum or
Luffing Hoist
Liftcrane
FIGURE 4-77
NOTE 1: Position the clamps tight against the bearing. Before
tightening the bolts, make sure the sheave turns
freely. Tighten the bolts, lubricated with SAE 20 oil to
163 Nm (120 ft-lb).
NOTE 2: When using the liftcrane sheaves, it may be
necessary to move or remove the clamshell sheaves
to properly position the liftcrane sheaves.
NOTE 3: Remove the outboard clamp and position the sheave
against the boom point plate.
NOTE 4: This location requires two clamps.
NOTE 5: Position the guide sheave here for liftcrane operation
with single-part line over the upper point. Use two
clamps.
