SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-134
Published 06-24-16, Control # 241-01

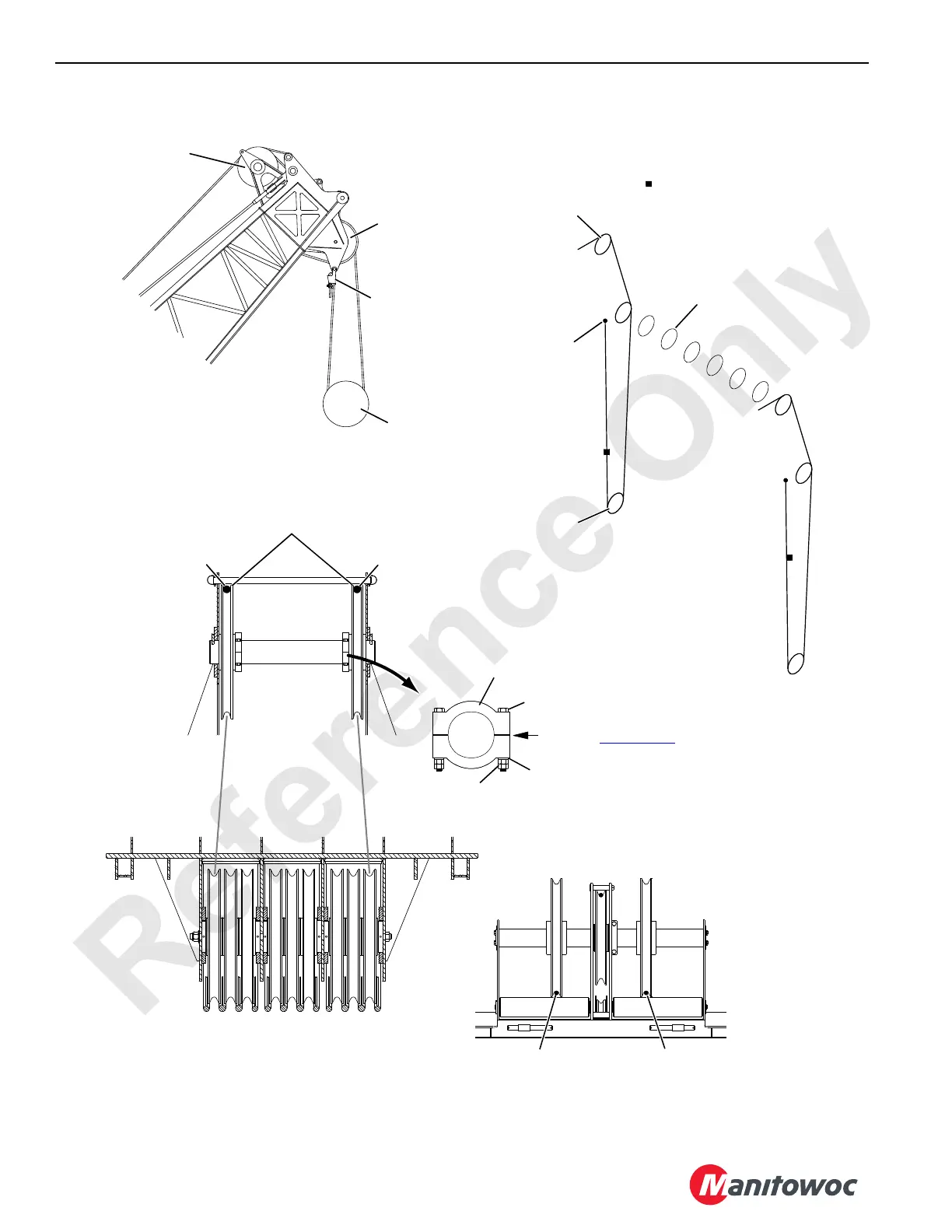

Container Handling Reeving—Heavy Lift Boom
Tighten each side equally to provide an equal gap.
See
Figure 4-69 NOTE 1 for torque value.
Clamp
Bolt
Nuts
Lock Washer
A616
A712
Container
Sheave
Lower
Boom
Point
Boom Top
Guide Sheaves
Dead-End
Socket
and Wedge
Typical View Both Sides
of #44 HL Boom Point
Suggested Location of Weight
for Block-Up Limit Control
=
Container
Sheave
Lower
Boom
Point
Dead-End
Socket
and Wedge
Boom Top
Guide Sheave
S1
S9
Two 2-Part Load Lines
over Lower Boom Point
S1 S9
Lower
Boom
Point
Boom Top
Guide Sheaves
Outboard Clamps Removed and
Sheaves Secured Against Frame
to Ensure Proper Fleet Angles
From Left Rear
or Front Drum
From Right Rear
or Rear Drum
FIGURE 4-76
Boom
Butt
From Left Rear
or Front Drum
From Right Rear
or Rear Drum
