OPERATING CONTROLS AND PROCEDURES 2250 OPERATOR MANUAL
3-10
Published 06-24-16, Control # 241-01

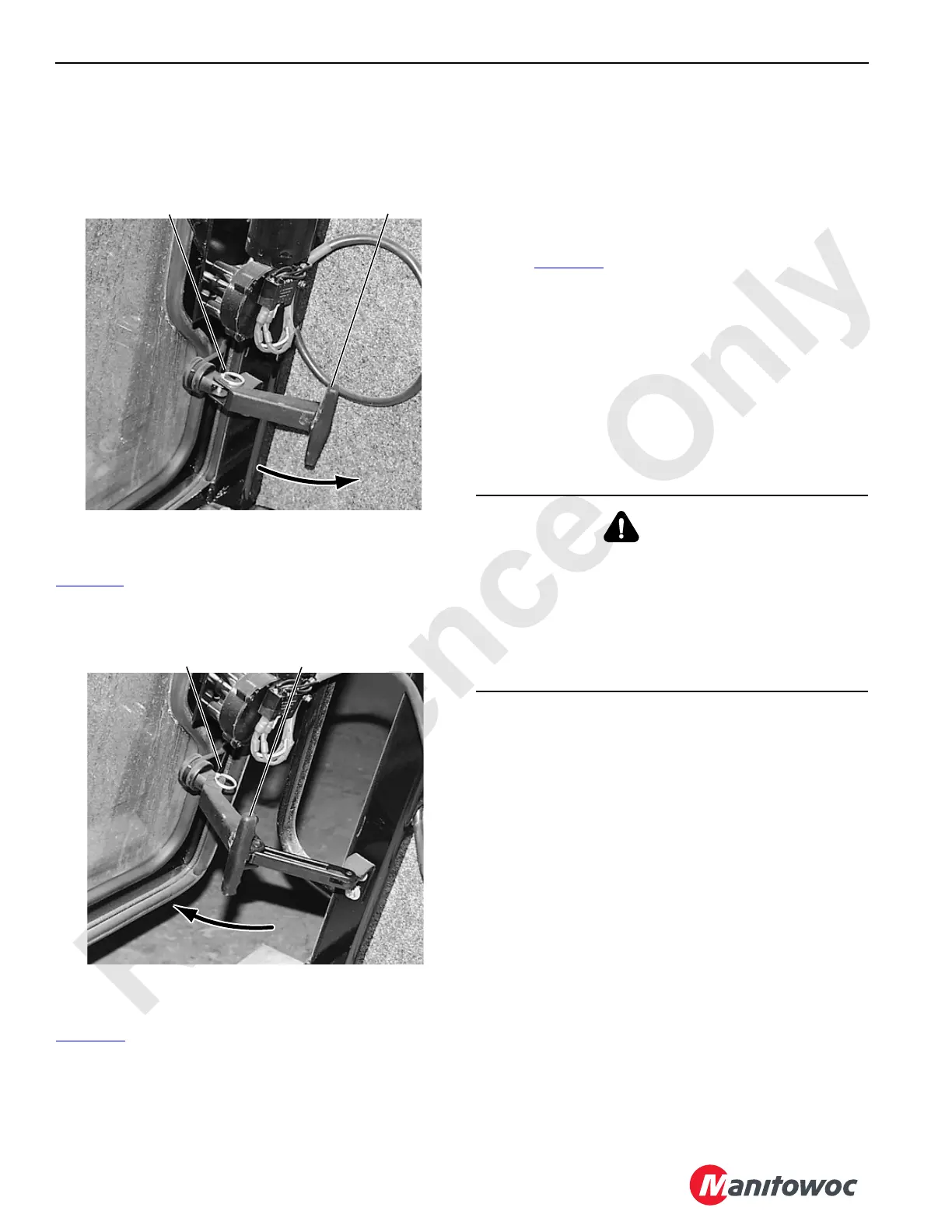

FRONT WINDOW OPERATION
Closing Window
Rotate the window latch handle to the position shown in
Figure 3-2
.
Opening Window for Ventilation
Rotate the window latch handle to the position shown in
Figure 3-3
. The window can be swung open 203 mm (8 in)
for ventilation.
Opening Window for Emergency Exit
Rotate the handle to open the window and pull out the quick-
release pin. The window can be swung open fully to allow
emergency exit from the cab.
CONTROLS IDENTIFICATION AND
FUNCTION
Refer to Figure 3-4 for the following paragraphs identifying
controls and their functions.
General
The purpose of the following instructions is to familiarize
qualified operators with the location and function of the
operating controls for the Model 2250. This topic also
contains safety information and a description of operation for
each crane function.
Depending on the options your crane is equipped with, some
of the controls identified will not apply.
Handle
Quick-Release
Pin
P1404
FIGURE 3-2
HandleQuick-Release Pin
P1405
FIGURE 3-3
WARNING
Prevent Death or Serious Injury to Personnel!
Avoid possible injury, death, or equipment damage. Read
and thoroughly understand the instructions in this manual
and in the Capacity Chart Manual.
Contact the Manitowoc Crane Care Lattice Team for
assistance if any operating procedure is not clearly
understood.
