2250 OPERATOR MANUAL SETUP AND INSTALLATION
4
UNDERCARRIAGE LUBRICATION AT
ASSEMBLY
Each time the crawlers are assembled to the carbody,
thoroughly clean and grease all machined surfaces on the

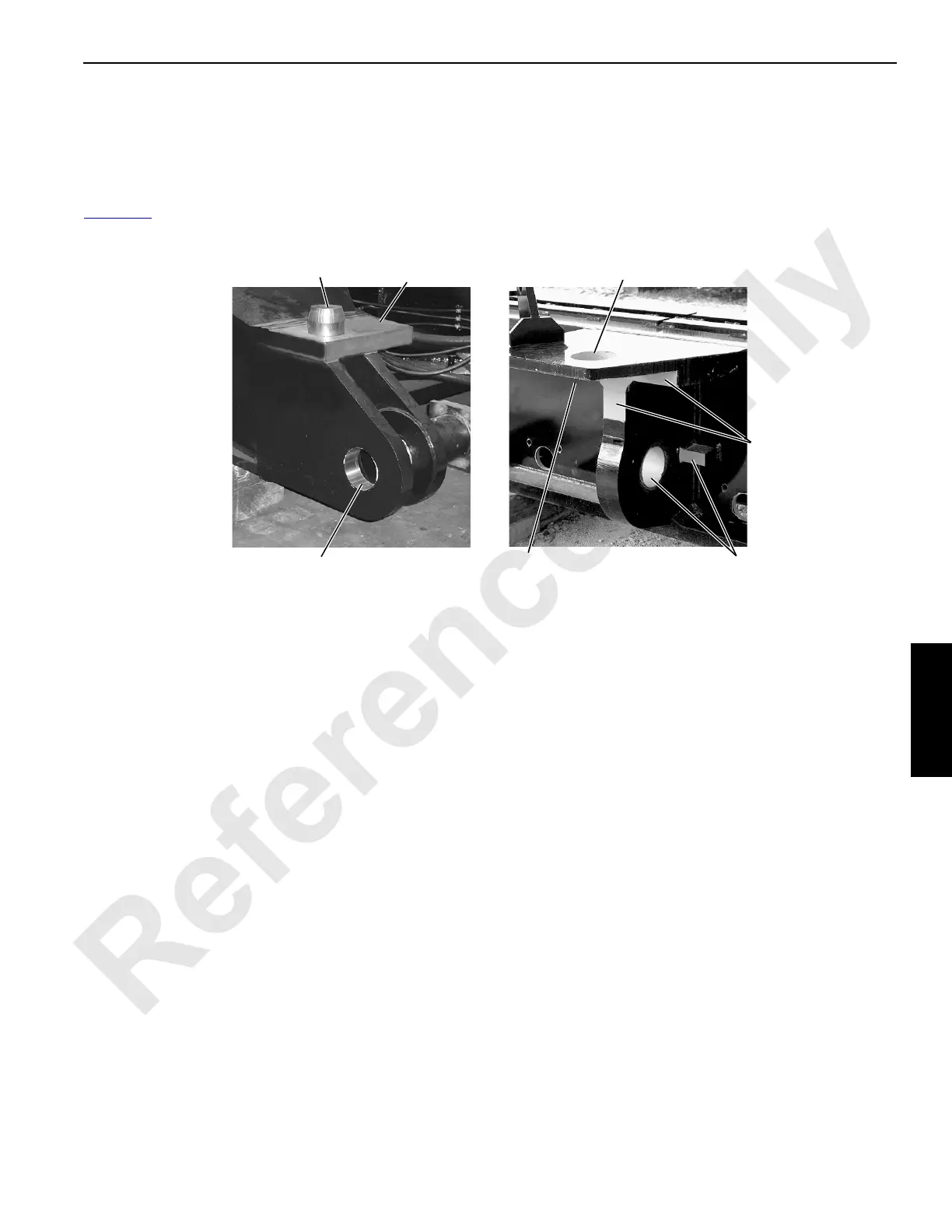

carbody and the crawlers (surfaces marked with * in
Figure 4-6
).
Failing to perform this step will cause loud noises to come
from the undercarriage when turning (cutting) the crawlers or
swinging the rotating bed over the corner of the crawlers.
*
*
*
*
*
Entire Under Surface
Entire Surface
*
*
P1985
P1986
Crawler
Carbody
FIGURE 4-6
