OPERATING CONTROLS AND PROCEDURES 2250 OPERATOR MANUAL
3-78
Published 06-24-16, Control # 241-01
Disconnecting Crane Swing Drive
See Figure 3-63 for the following procedure.
1. Pull out the locking pin knob.
2. Rotate the handle fully to the left (when facing the
handle).
3. Release the locking pin knob.
4. Ensure that the handle is locked in position.
5. Repeat this procedure for the second swing drive.
Connecting Crane Swing Drive
See Figure 3-63 for the following procedure.
1. Pull out the locking pin knob.
2. Rotate the handle fully to the right (when facing the
handle).
3. Release the locking pin knob.
4. Ensure that the handle is locked in position.
5. Repeat this procedure for the second swing drive.

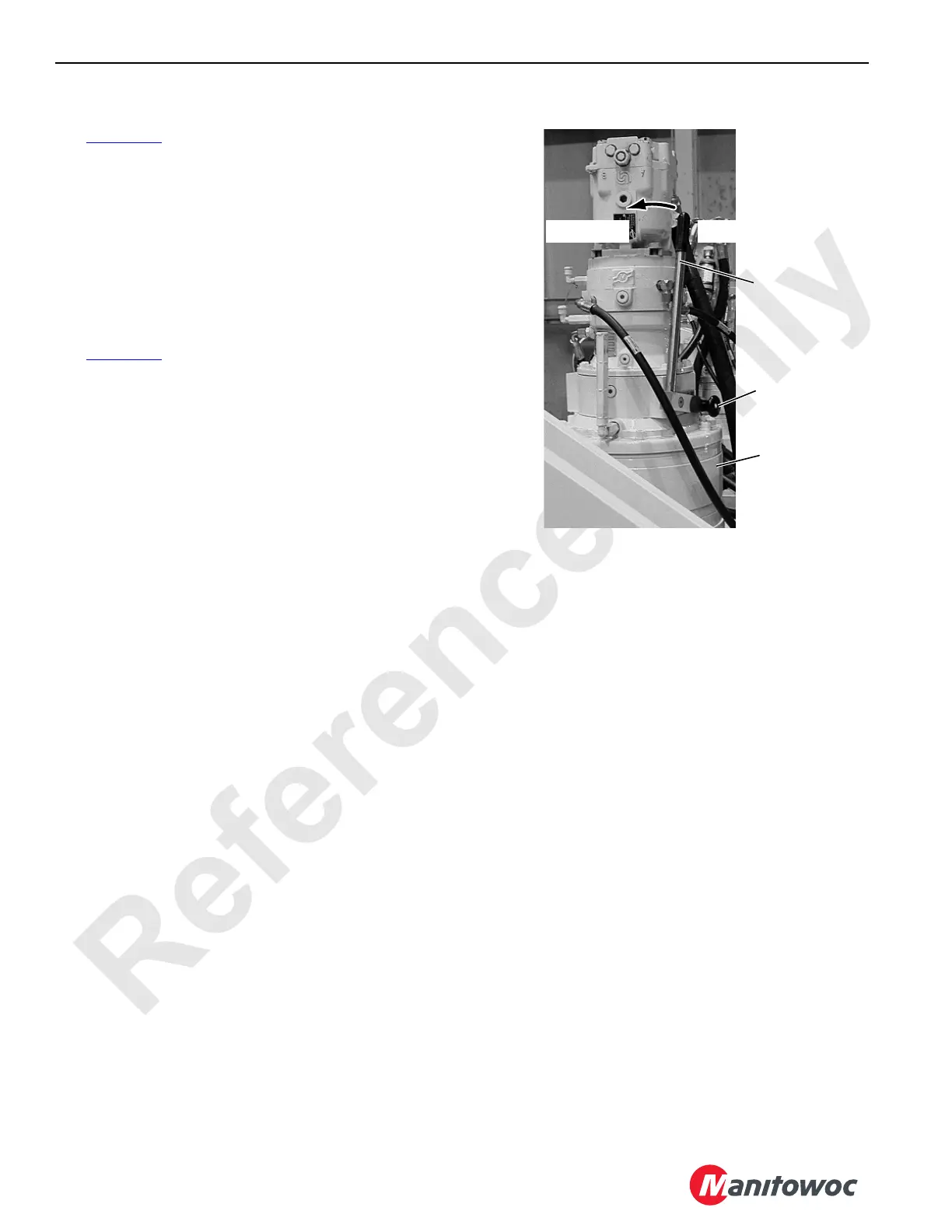

FIGURE 3-63
Disconnect
Swing
Planetary
Locking
Pin Knob
Handle
P2018
Connect
