2250 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
3

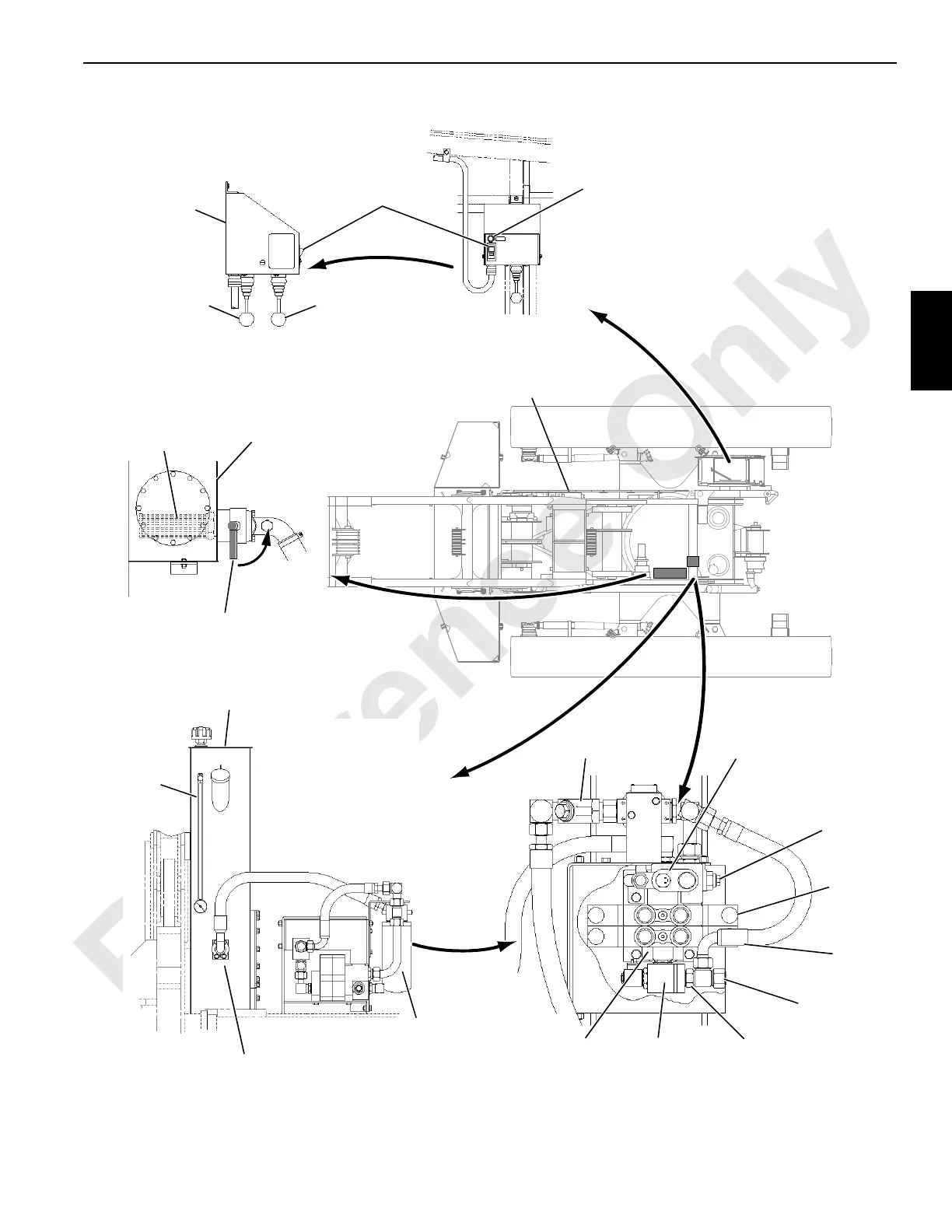

FIGURE 3-64
A07614
Left Wall
in Cab
B
A
Spotter
Selector
Pump
159 L/min (42 gpm)
@ 3,000 rpm (high
Hydraulic
Tank
Sight
Gauge
Filter
Top View
Directional Control Valve
Hydraulic
Dump Valve
Relief Valve
207 bar
(3,000 psi)
Inlet
Section
Work
Section A
Work
Section B
To Spotter
(hidden)
From
Spotter
Control
Valves
Swing Check
Valve
End Cap
A07538
A468
A07538
Hydraulic
Tank
Shut-Off Valve Shown
Closed. Open Before
Operating Engine.
Suction
Screen
Diffuser
(inside)
Spotter Light
