Manitowoc Published 06-24-16, Control # 241-01 4-123
2250 OPERATOR MANUAL SETUP AND INSTALLATION
4
Guide Sheaves
See Figures 4-69 and 4-70 for guide sheave identification.
Once the wire rope is routed through the guide sheaves,
make sure to install the rope guard pins, bars, and rollers to
retain the rope on the guide sheaves. Wire rope and sheaves
can be damaged if the rope is not properly retained on the
sheaves.
Drum Spacers
See Drum Spacer/Lagging Installation on page 4-48 for
installation of the spacers on the load drums.
Spacers are required on the ringer-prepared cranes with
1,9 m (73 in) wide load drums. Failing to install spacers can
result in wire rope damage due to improper fleet angles.

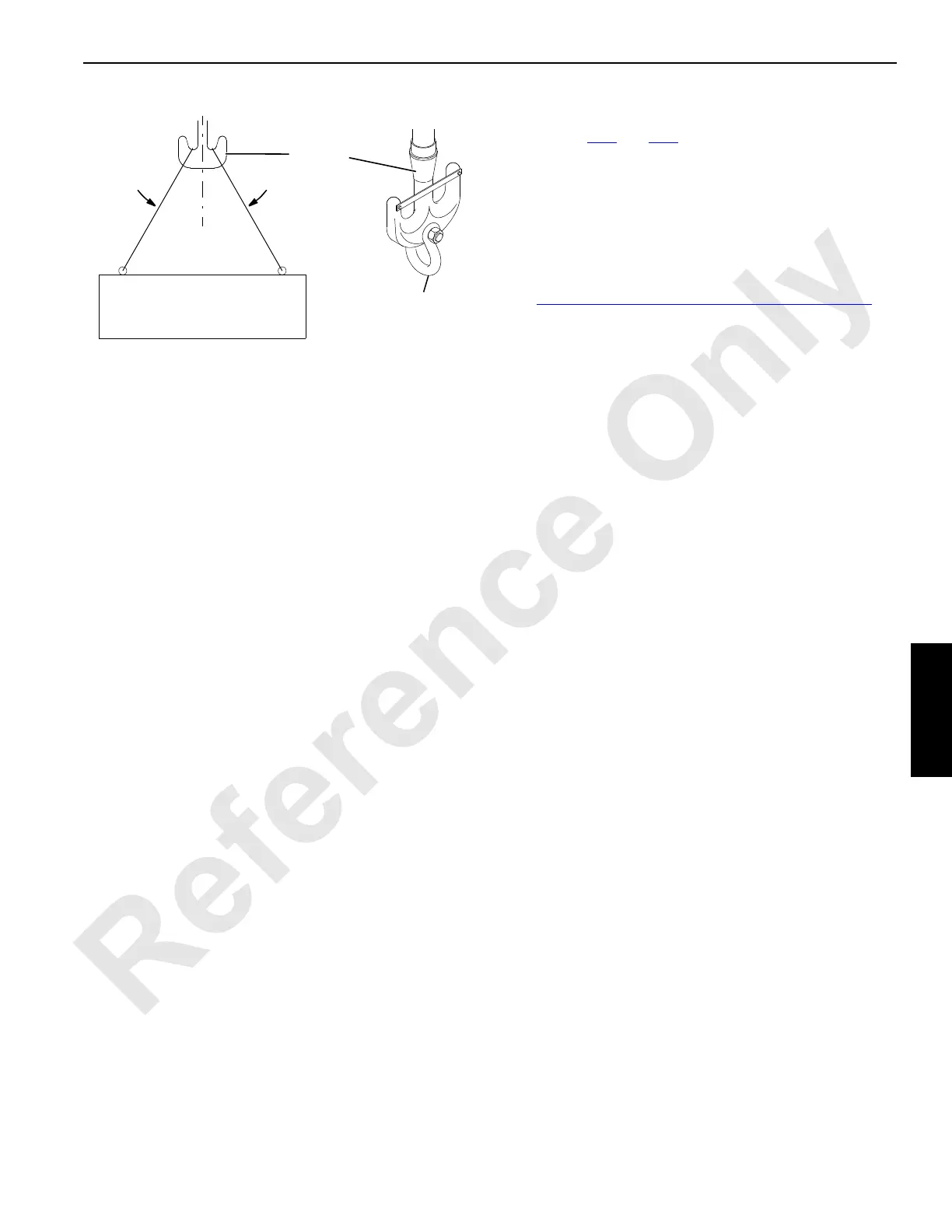

FIGURE 4-68
Duplex
Hook
A802
0-45° 0-45°
Shackle
Load
