INTRODUCTION 2250 OPERATOR MANUAL
1-4
Published 06-24-16, Control # 241-01
Engine Components
Item Description
1 Diesel Exhaust Fluid (DEF) Filler Tube
2 Diesel Particulate Filter (DPF)
3 Diesel Exhaust Fluid (DEF) Dosing Unit
4 Fuel Filler Tube
5 Air Filter Restriction Gauge
6 Air Filter Assembly
7 Battery (qty 2)
8 Temperature Sensor
9 Tail Pipe
10 Selective Catalytic Reduction (SCR) Filter
11 Diesel Exhaust Fluid (DEF) Junction Manifold
12 Diesel Exhaust Fluid (DEF) Supply Pump
13 Drive Pump Assembly
14 Pump Drive
15 Diesel Exhaust Fluid (DEF) Coolant Lines
16 Diesel Exhaust Fluid (DEF) Coolant Control Valve
17 Diesel Exhaust Fluid (DEF) Tank

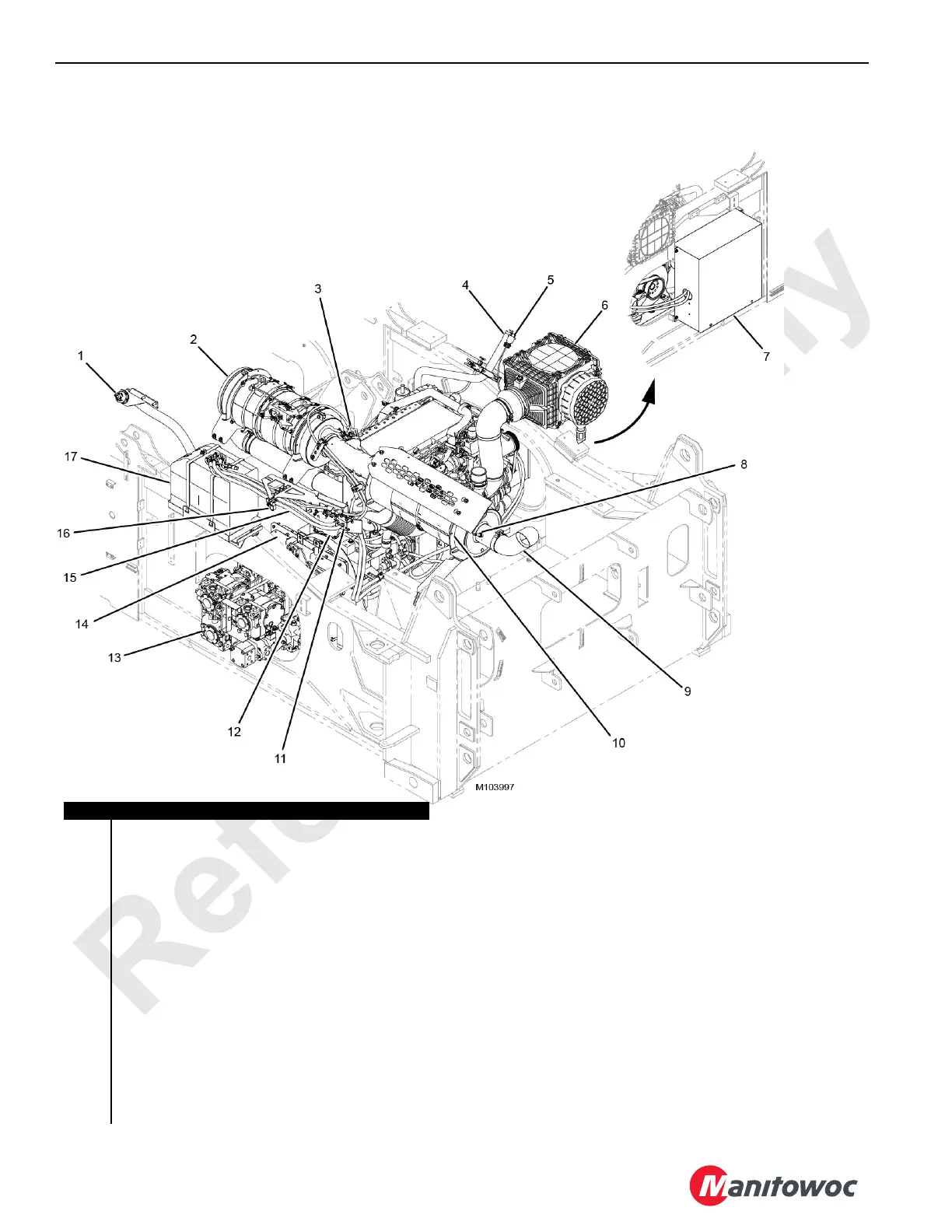

FIGURE 1-4
