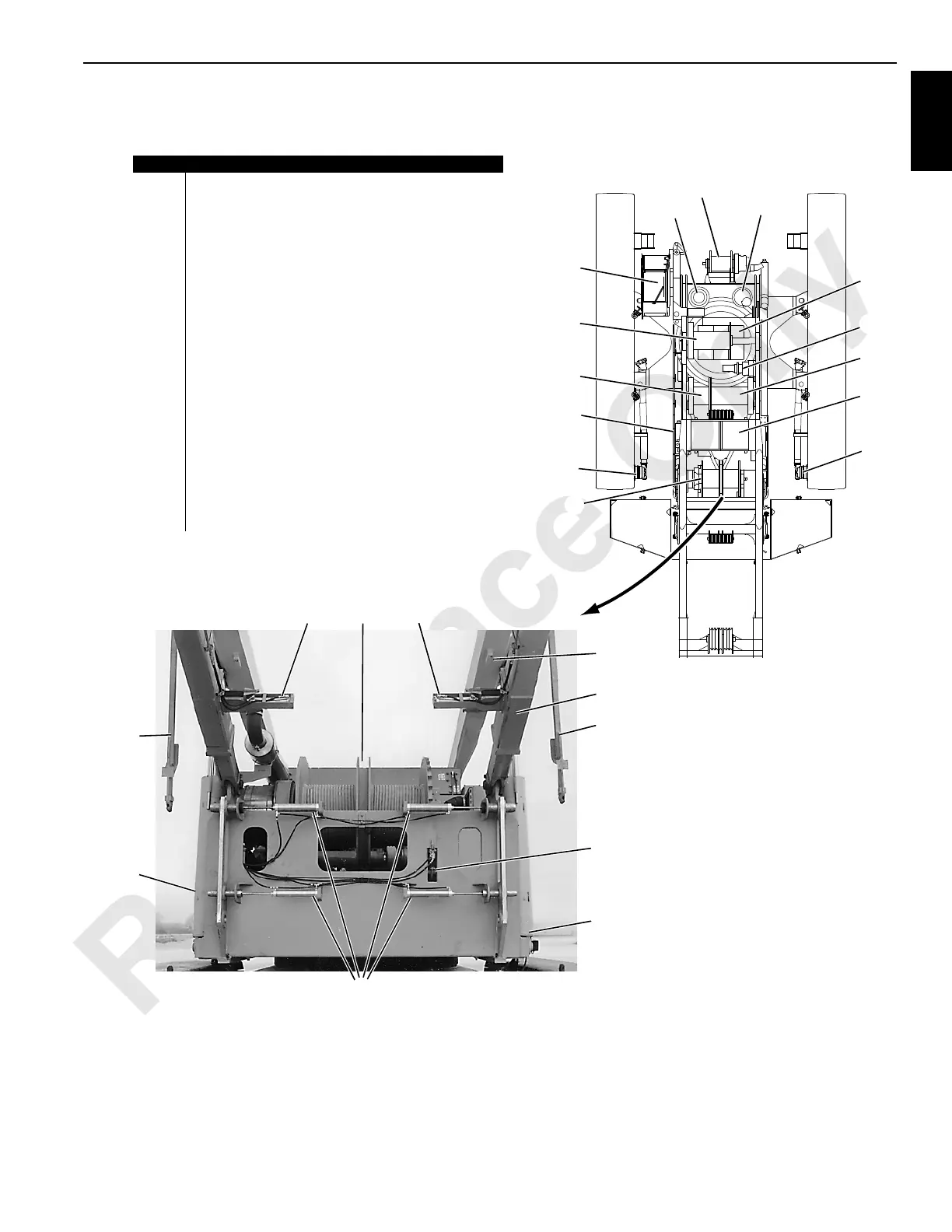

2250 OPERATOR MANUAL INTRODUCTION
1
A468
13
9
8
12
Item Description
1 Left Swing Motor (optional)
2 Right Swing Motor
3 Luffing Hoist Drum
4Swivel
5 Load Drum(s) Motor
6 Right Rear Load Drum
7 Engine
8 Right Crawler Drive
9 Boom Hoist Drum
10 Left Crawler Drive
11 Pump Drive and System
12 Left Rear Load Drum
13 Front Load Drum
14 Operator’s Cab
15 Gantry Backhitch Cylinder (air) (qty 2)
16 Boom Hoist
17 Gantry
18 Gantry Backhitch (telescopic) (qty 2)
19 Counterweight Handling Links
20 Boom Hoist Pawl Cylinder (air)
21 Gantry Lifting Cylinder (hydraulic) (qty 2)
22 Counterweight Connecting Pin Cylinder (air) (qty 4)
Rear View with Upper Counterweight Removed
(upper counterweight attached to crane with item 22)
20
21
22
19
21
1615 15
P892
18
17
19
1
3
5
6
14
4
7
2
11
10
FIGURE 1-3
