OPERATING CONTROLS AND PROCEDURES 2250 OPERATOR MANUAL
3-86
Published 06-24-16, Control # 241-01
Item Description Item Description Item Description
1 Auxiliary Power Unit (APU) 6 APU Cab Key Switch 9 APU Cab Control Panel
2 Rotating Bed 7a STOP Position 10 HVAC Controls
3 APU Interlock Switch 7b RUN Position 11 Rotating Bed Interlock Switch
4 APU Key Switch 7c START Position
5 APU Control Panel 8 Right Side Control Panel

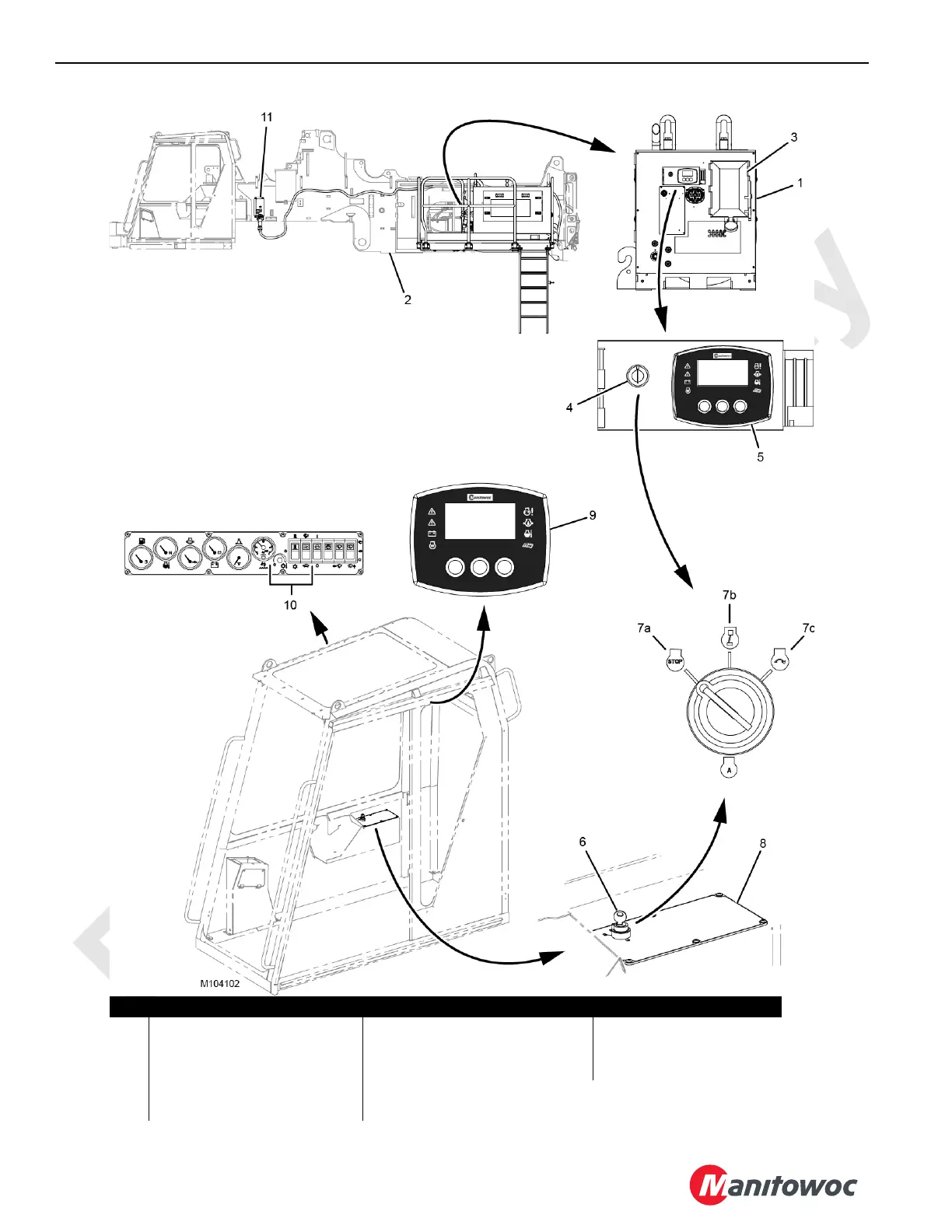

FIGURE 3-67
