Manitowoc 2250 - Page 186

Reference Only
SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-24
Published 06-24-16, Control # 241-01
Tie-Down Clip
Dead-End
Socket
Equalizer
Load Line
Retaining Pins
Small
Sheave
View C
P684
P685
A1048
View B

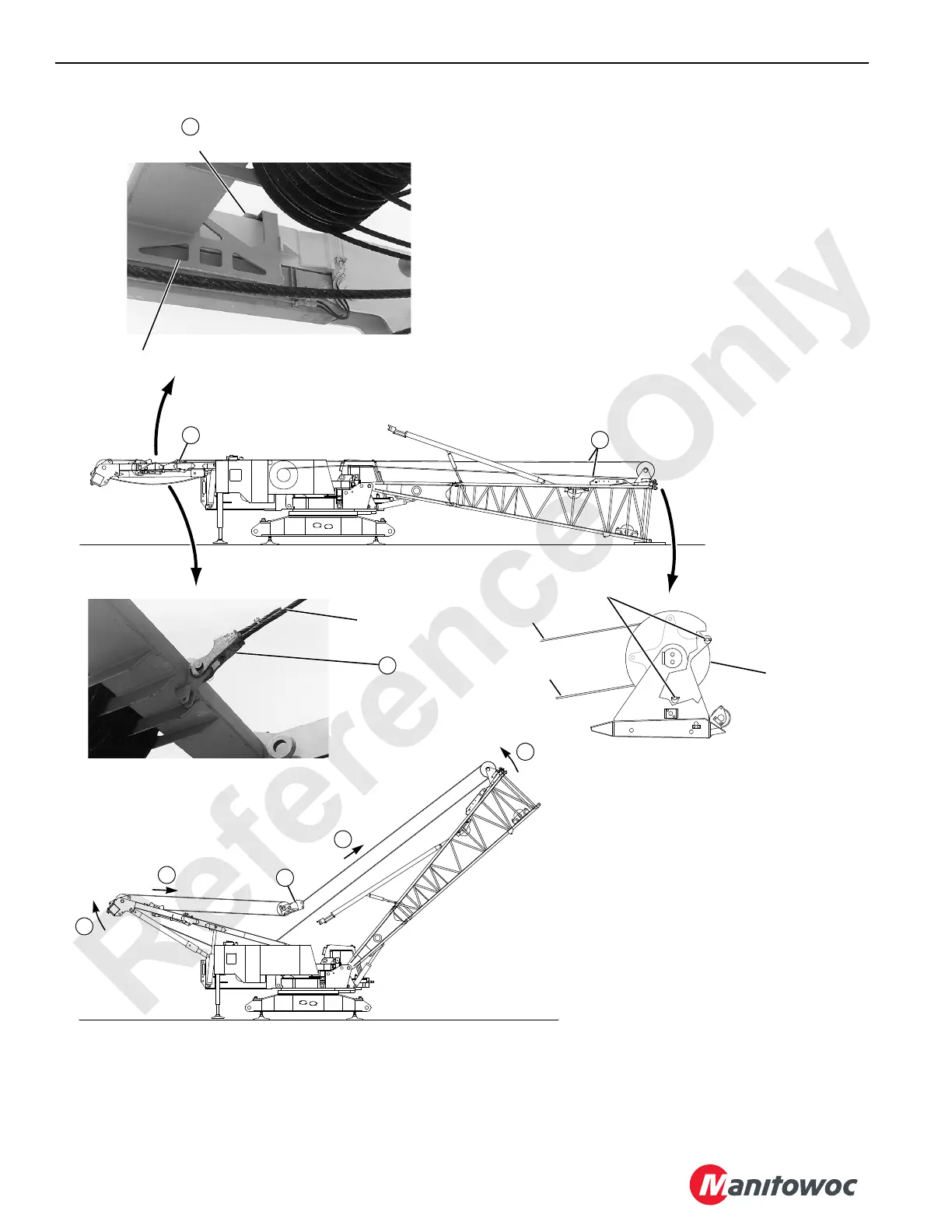

FIGURE 4-14
A541
View A
A1048
1
2
4
7
5
8
7
6
To E q ual i zer
From Load Drum
3
