SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-28
Published 06-24-16, Control # 241-01

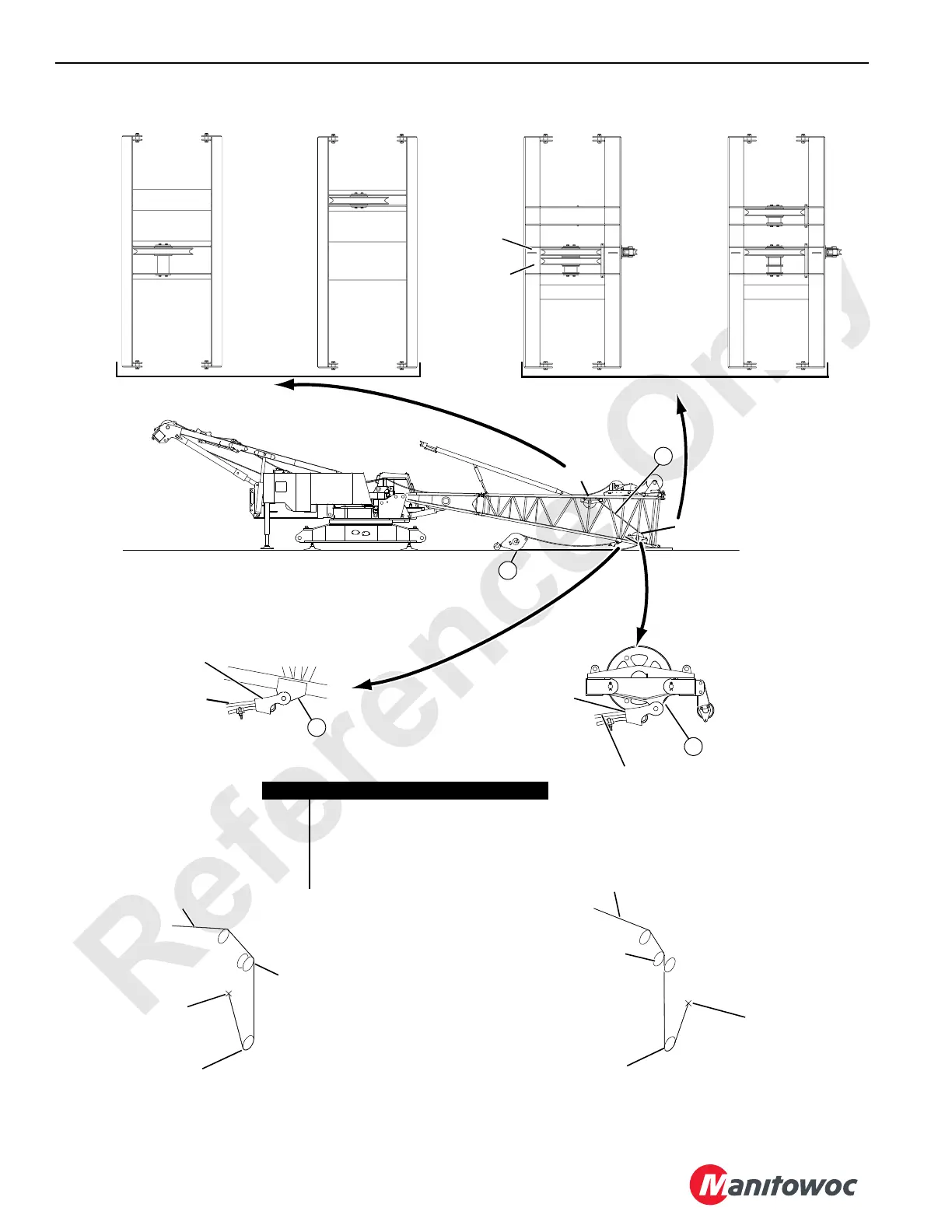

FIGURE 4-16
Load Line
from RR
27,2 t (30 USt)
Assembly Block
LR
Flat Side
Toward Guide
Sheave Frame
From RR
Right
Sheave
Flat Side
Tow a r d Bu t t
Dead-End Lug
(see View D)
Left
Sheave
27,2 t (30 USt)
Assembly Block
Dead-End Lug
Dead-End
Lug
From LR
View A
View B
View C
View D
A1048
2
3
3
1
RR
A
B
A
B
A
B
LR
LH
LR
A
B
B
Item Description
A Wire Rope Guide in Top of Butt
B Wire Rope Guide in Bottom of Butt
RR Rear or Right Rear Drum
LR Left Rear Drum
LH Luffing Hoist
RR
LH
Dead-End Lug
(see View C)
